Visual Check

CAUTION:

Perform the visual check at lighted places.
Avoid work in the situation where strong light is reflected or thick shadow is created by the light from one direction (such as outdoor with strong sunlight) as it is difficult to see indications on the center information display.
Do not turn off the ignition switch while performing visual check using the Subaru Select Monitor. If the ignition switch is turned off, it is necessary to perform simple calibration as DTC is stored.

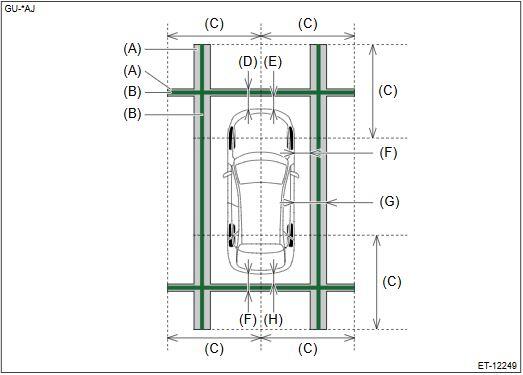

Use packing tape (target) to create a straight line within the target area.

Specification:

Packing tape (target) affixing width: 100±10 mm (3.94±0.39 in)

NOTE: Use packing tape that can be detected by the camera.

Courtesy of SUBARU OF AMERICA, INC.

Turn the ignition switch to ON.
Using the Subaru Select Monitor, select [Visual Confirmation] in [Work Support] of [Front & Side Camera/Multi View Monitor]. Ref. to COMMON (DIAGNOSTICS)>WORK SUPPORT>OPERATION .

On the top view image displayed on the center information display, check if the vertical and horizontal lines are not broken or are doubly blurred.

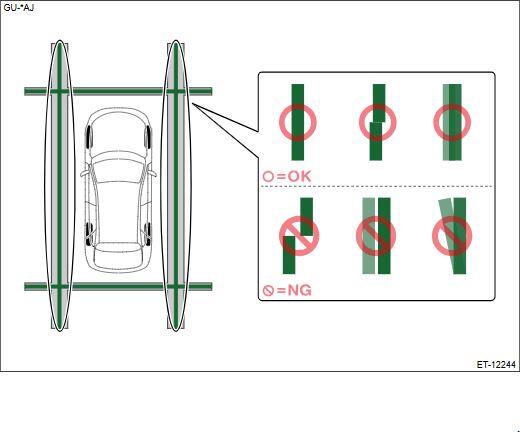

Vertical line reference

Courtesy of SUBARU OF AMERICA, INC.

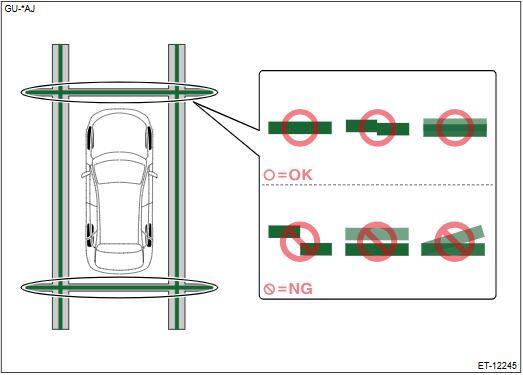

Horizontal line reference

Courtesy of SUBARU OF AMERICA, INC.

After confirmation, perform the following items.
- If the result is OK: Select the camera that was removed, installed or replaced, and press [Complete] to complete the procedure.
- If the result is NG, press [Back]. Subsequently perform simple calibration. Ref. to ENTERTAINMENT & MONITORING>CAMERA>ADJUSTMENT>SIMPLE CALIBRATION .
