Cockpit Display: Disassembly

1. Remove the center information display.

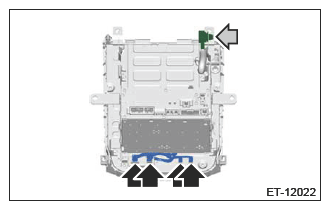

   1. Remove the screws.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.

      Courtesy of SUBARU OF AMERICA, INC.

   2. Release the clips and disconnect the connectors, and then remove the center information display.

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .
3. Disconnect the connectors, and remove the cord assembly.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the screws and remove the unit bracket from the cockpit control module.
   NOTE: Remove the screws on LH side in the same procedure as on the RH side.

Courtesy of SUBARU OF AMERICA, INC.
