Engine Intake System (Induction) And Turbocharger: Intercooler: Installation

Replace the intake duct No. 2 gasket with a new part.

Courtesy of SUBARU OF AMERICA, INC.

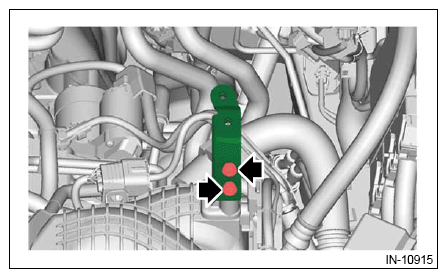

Install the intercooler stay LH to the intake manifold assembly.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

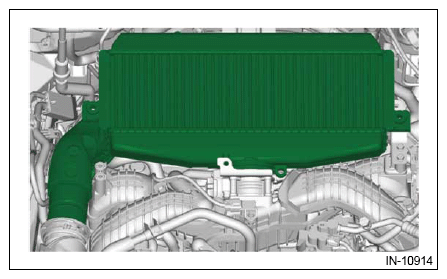

Using a new gasket, set the intercooler and the intake duct No. 3 as a unit.

Courtesy of SUBARU OF AMERICA, INC.

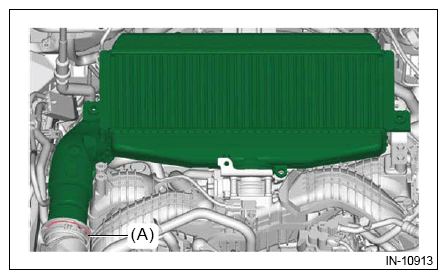

Return the spring (A) of intake duct No. 2 to the original position, and connect the intake duct No. 3 to the intake duct No. 2.
CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.
Courtesy of SUBARU OF AMERICA, INC.

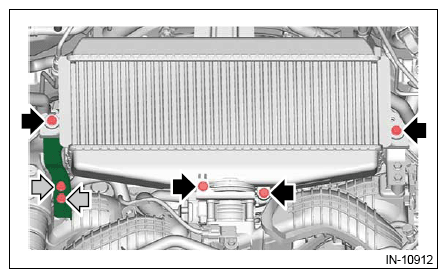

Install the intercooler stay RH to the intake manifold assembly, and install the bolts which secure the intercooler.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
