Forward Clutch

  1. Remove the retaining plate, forward clutch plate set and dish plate.
    NOTE: In order to avoid installing the dish plate in the wrong direction, paint a mark before removal.

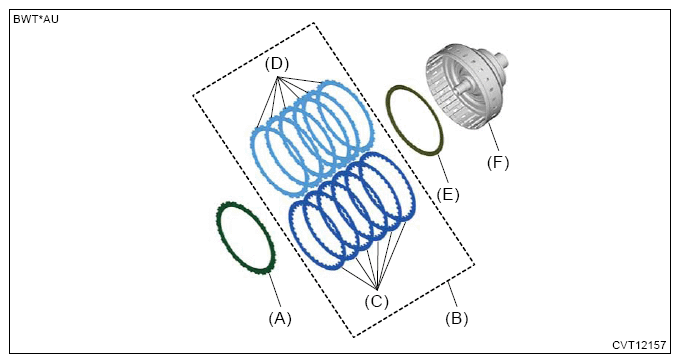

    G16389685Courtesy of SUBARU OF AMERICA, INC.
    (A) Retaining plate
    (B) Forward clutch plate
    (C) Drive plate
    (D) Driven plate
    (E) Dish plate
    (F) Forward clutch drum
  2. Compress the return spring using the ST and a press to remove the snap ring.

    Preparation tool:

    ST: COMPRESSOR SPECIAL TOOL (18762AA001)

    G13622171Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the forward clutch piston retainer and return spring.

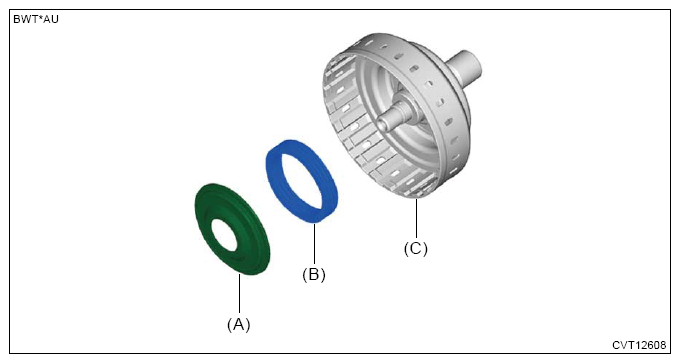

    G16389687Courtesy of SUBARU OF AMERICA, INC.
    (A) Forward clutch piston retainer
    (B) Return spring
    (C) Forward clutch drum

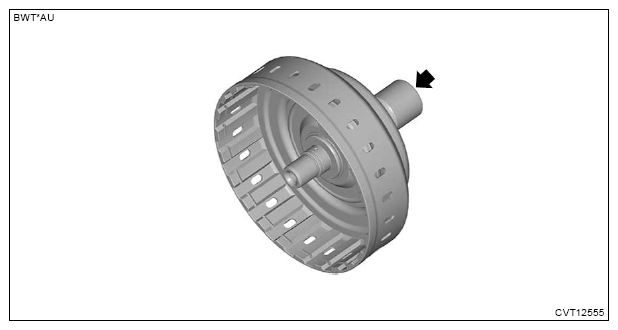

  4. Blow compressed air through the hole shown in the figure, and remove the forward clutch piston.
    G13622173Courtesy of SUBARU OF AMERICA, INC.
