Battery Cable Assembly
Battery Cable Assembly

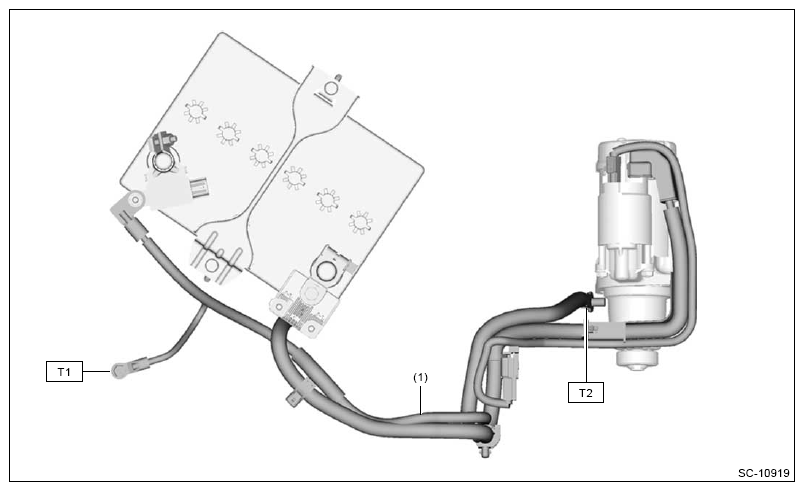

Fig 1: Battery Cable Assembly Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Battery cable ASSY
Tightening torque: N.m (kgf-m, ft-lb)
T1: 13 (1.3, 9.6)
T2: 14 (1.4, 10.3)
Courtesy of SUBARU OF AMERICA, INC.
