RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

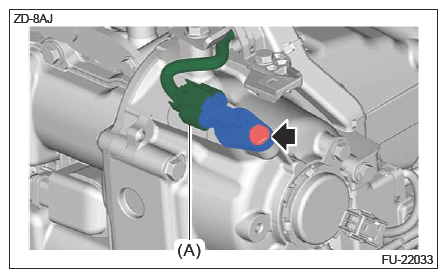

  2. Disconnect the connector (A) and remove the camshaft position sensor.
G16523343Courtesy of SUBARU OF AMERICA, INC.
