Draining Fuel (With Other Than SUBARU Select Monitor)

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
Fuel may remain in the fuel filler pipe. Drain the fuel from the fuel filler pipe through the fill opening using the gasoline proof pump and the gasoline proof hose (ø10 or less) before the operation.

NOTE: Be aware that the fuel may remain in the fuel tank after draining the fuel.

Set the vehicle on a lift.
Open the fuel filler lid and remove the fuel filler cap.
Drain the fuel from the fuel filler pipe through the filler opening using the gasoline proof pump and the gasoline proof hose (ø10 or less).
CAUTION:
- Be careful not to spill fuel.
- Always collect fuel using a dedicated fuel container.
Lift up the vehicle.

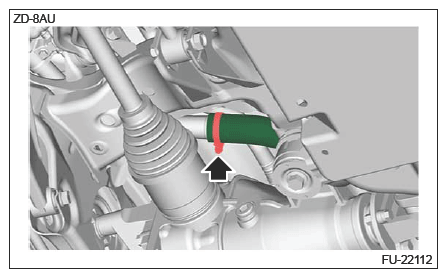

Disconnect the fuel filler hose from the fuel filler pipe.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
Courtesy of SUBARU OF AMERICA, INC.
Set the container under the vehicle and insert the gasoline proof hose (ø10 or less) into the fuel filler hose to drain the fuel.
CAUTION:
- Be careful not to spill fuel.
- Always collect fuel using a dedicated fuel container.
Install the related parts in the reverse order after draining the fuel.
NOTE: For information about connecting fuel filler hose, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>FUEL FILLER HOSE CONNECTION .
