Shift Solenoid

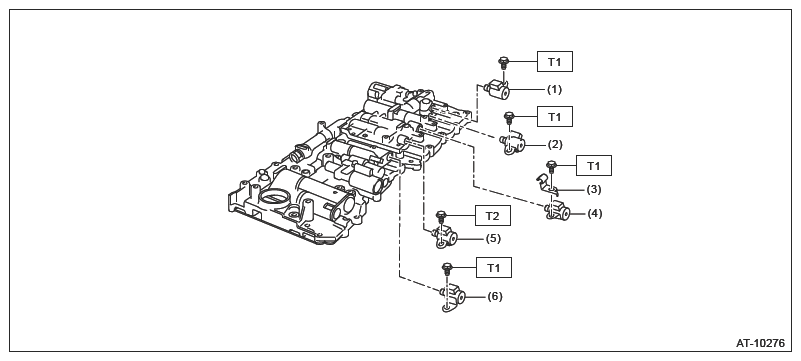

Fig 1: Shift Solenoid Components Location

G16525526

Courtesy of SUBARU OF AMERICA, INC.

(1)	Shift solenoid C (S3)
(2)	Shift solenoid B (S2)
(3)	Harness clamp
(4)	Shift solenoid D (S4)
(5)	Shift solenoid A (S1)
(6)	Shift solenoid E (SR)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: Ref. to AUTOMATIC TRANSMISSION>CONTROL VALVE BODY>ASSEMBLY .
