Keyless Access System

CAUTION:

When performing the check, check one access key at a time, separating individual keys.
Do not leave any separated access keys in the vehicle.

NOTE: The following inspections show the initial settings. When the settings are different from the initial settings, use Subaru Select Monitor to check the details of each setting for inspections. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR>LIST .

While carrying the access key, check that the room light illuminates when you move close to the door handles of the vehicle whose doors are all locked.
While carrying the access key, check that only the driver's door is unlocked, the hazard lights flash, and the buzzer sounds by grasping the door knob on the driver's side (touching the touch sensor (unlock)).
While carrying the access key, check that all doors are unlocked, and the hazard lights flash by grasping the door knob on the passenger's side (touching the touch sensor (unlock)).
While carrying the access key, check that all doors are locked, the hazard lights flash, and the buzzer sounds by touching the touch sensor (lock) of the door.
NOTE:
- The buzzer sounds twice and the hazard lights flash twice when unlocking.
- The buzzer sounds once and the hazard lights flash once when locking.
Courtesy of SUBARU OF AMERICA, INC.

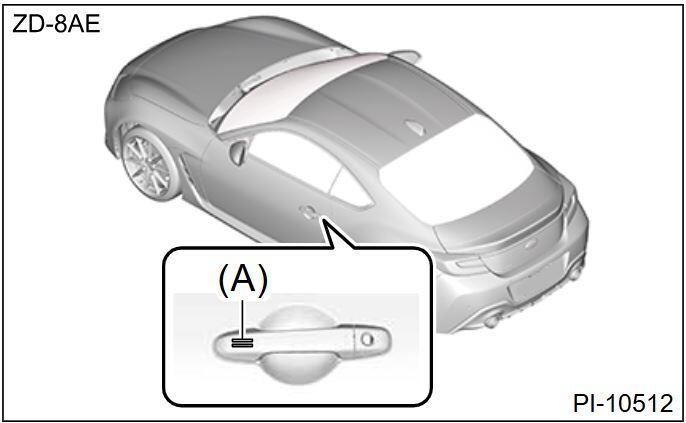

(A) Touch sensor (lock)
While carrying the access key, check that the trunk unlocks when you press the trunk opener switch.

Courtesy of SUBARU OF AMERICA, INC.

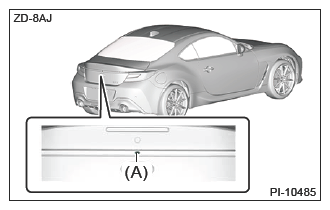

(A) Trunk opener switch
With all doors closed and the access key carried, touch the touch sensor (lock). Grasp the door knob (touch the touch sensor (unlock)) to execute the unlock operation, and check that all doors are locked automatically after 30 seconds. (The buzzer starts sounding 5 seconds before doors are locked.)
Manually operate the access key button to check the lock/unlock of doors and trunk, and the flashing of hazard lights.
Check that the mechanical key attached to the access key can be used for locking/unlocking.
CAUTION: The mechanical key is a single groove type. Insert the mechanical key with the groove side facing the front side of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

(A) Mechanical key
Check that the warning buzzer sounds and the door-lock does not operate, when the doors are closed with the access key left in the vehicle and the touch sensor (lock) on door is touched.
CAUTION: Remove the mechanical key from the access key and hold the mechanical key.
With all the doors locked and the access key in the trunk (with trunk closed), check that the warning buzzer sounds and the trunk unlocks when you press the trunk opener switch.
