Steering Wheel: Disassembly

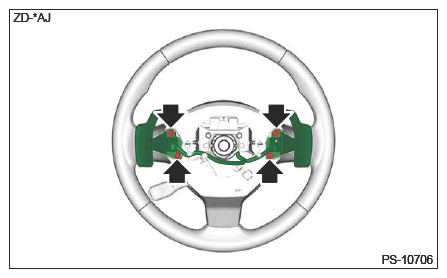

1. Remove the screws to remove the paddle shift switch assembly. (AT model)

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the satellite switch assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING SWITCH>REMOVAL>SATELLITE SWITCH ASSEMBLY .
3. Remove the switch assembly cruise. Ref. to EYESIGHT>CRUISE CONTROL COMMAND SWITCH>REMOVAL .

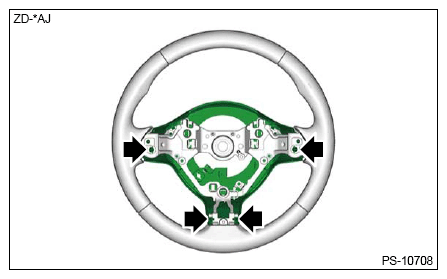

4. Remove the screws, and then remove the dynamic damper.

   Courtesy of SUBARU OF AMERICA, INC.

5. Disengage the claws, and remove the cover steering wheel LWR.

Courtesy of SUBARU OF AMERICA, INC.
