Clutch System: Flywheel: Removal

CAUTION: Do not wash the pilot bearing since it is filled with grease.

Remove the transmission body. Ref. to MANUAL TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL
Remove the clutch disc and clutch cover. Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>REMOVAL
Secure the crank pulley with the ST1 and ST2.
NOTE: To prevent damaging ST1, attach the ST2 onto the ST1 as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA000)

Courtesy of SUBARU OF AMERICA, INC.

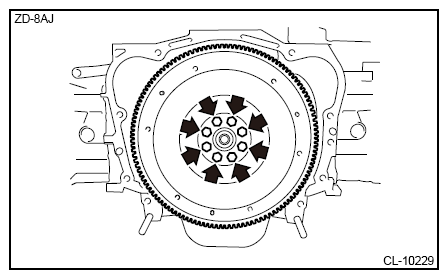

Remove the flywheel and crankshaft position sensor plate.

Courtesy of SUBARU OF AMERICA, INC.
Drive out the pilot bearing.
NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Pilot bearing
