RH Side

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

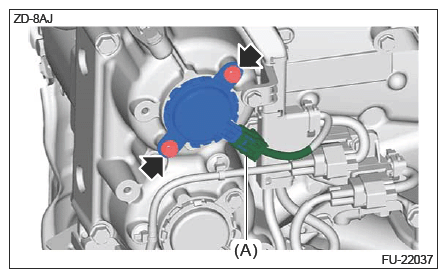

Disconnect the connector (A) and remove the oil control solenoid.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring and back-up ring from the oil control solenoid.
