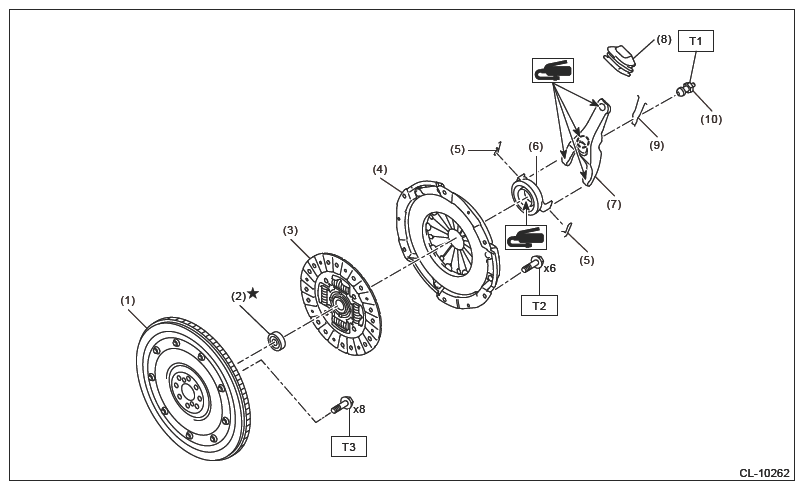

Clutch Assembly
| (1) | Flywheel |
| (2) | Pilot bearing |
| (3) | Clutch disc |
| (4) | Clutch cover |
| (5) | Clip |
| (6) | Release bearing |
| (7) | Release lever |
| (8) | Dust cover |
| (9) | Lever spring |
| (10) | Pivot |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>INSTALLATION .
T3: Ref. to CLUTCH SYSTEM>FLYWHEEL>INSTALLATION .
