Cylinder Head

• 2.0 L model

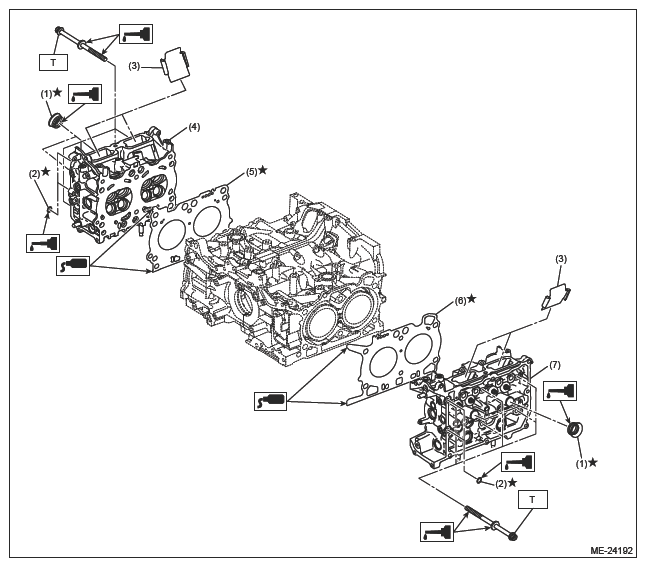

Fig 1: Cylinder Head Components Location (2.0 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T  Ref. to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .

• 2.5 L model

Fig 2: Cylinder Head Components Location (2.5 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T  Ref. to MECHANICAL (H4DO)>CYLINDER HEAD>INSTALLATION .
