Electrical Specification

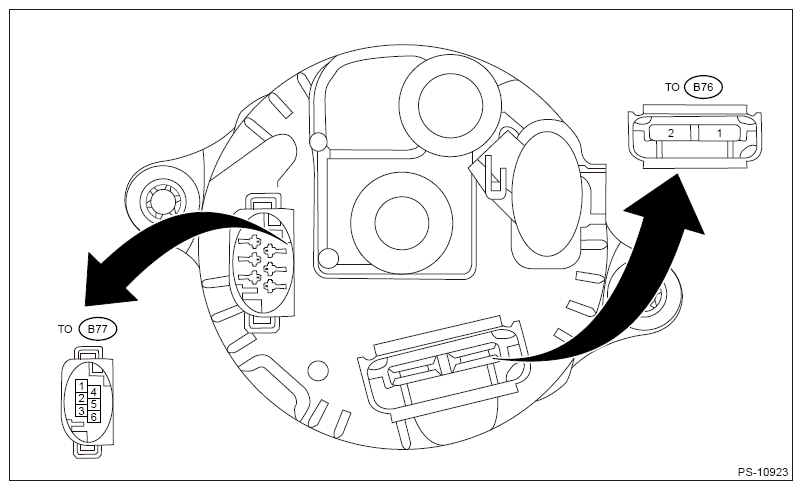

| Connector No. | Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|---|
| B76 | 1 | Ground | Always Measurement between (B76) No. 1 - (B76) No. 2 |
10 - 16 V |
| B76 | 2 | Battery power supply | ||
| B77 | 1 | Advanced safety CAN_L signal | Digital signal; cannot be measured | - |
| B77 | 3 | Chassis CAN_H signal | Digital signal; cannot be measured | - |
| B77 | 4 | Advanced safety CAN_H signal | Digital signal; cannot be measured | - |
| B77 | 5 | Ignition power supply | Ignition switch: ON Measurement between (B77) No. 5 - (B76) No. 1 |
9 - 16 V |
| B77 | 6 | Chassis CAN_L signal | Digital signal; cannot be measured | - |
