Front Hood Lock

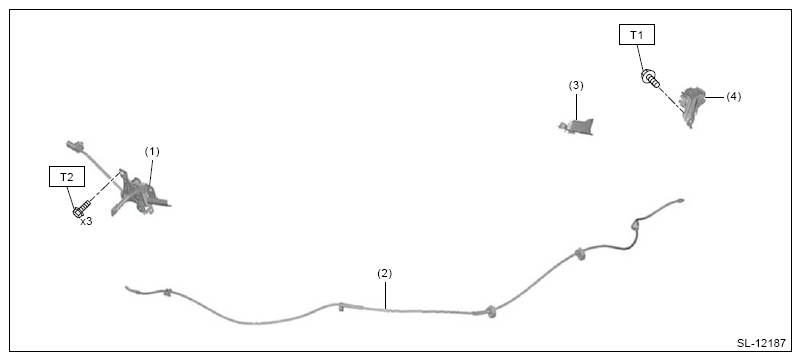

Fig 1: Front Hood Lock Components Location

G16339392

Courtesy of SUBARU OF AMERICA, INC.

(1)	Lock ASSY front hood
(2)	Cable ASSY front hood
(3)	Protector cable
(4)	Opener handle

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
