Rear Gate Lock

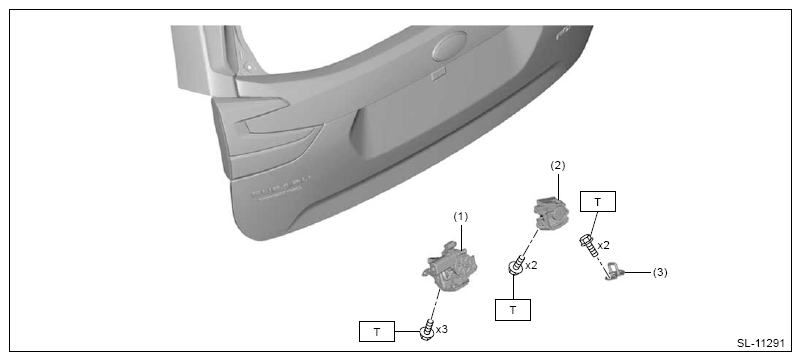

Fig 1: Rear Gate Lock Components Location

G16339391

Courtesy of SUBARU OF AMERICA, INC.

(1)	Latch and actuator rear gate PRG
(2)	Latch and actuator rear gate
(3)	Striker rear gate

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
