Brake Line
- Check for scratches, swelling, corrosion, traces of brake fluid leakage on the brake hoses or pipe joints.
- Make sure that brake pipes/hoses do not interfere with adjacent parts and there is no loose connector/clamp during driving.
- Check any trace of brake fluid leakage, scratches, etc. on master cylinder assembly and hydraulic unit assembly VDC.
NOTE:
- When the brake fluid level in the reservoir tank is lower than specified limit, the brake warning light on the combination meter will illuminate.
- Visually check the brake hose for damage. (Use a mirror where it is difficult to see)

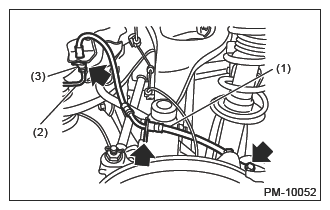

| (1) | Brake hose front |
| (2) | Pipe ASSY front ABS |
| (3) | Clamp |

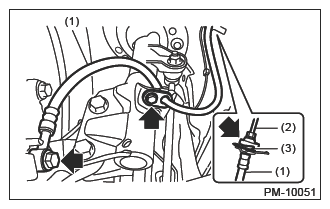

| (1) | Brake hose rear |
| (2) | Pipe center brake rear |
| (3) | Clamp |
