CVTF Cooler (With Warmer Function): Removal

CAUTION:

• Wait until the CVTF cools down before starting the procedure.
• If the CVTF and engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.

1. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
2. Remove the clip from the air intake boot, and loosen the clamp.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
   CAUTION: Be careful not to pull out the PCV hose.

   Courtesy of SUBARU OF AMERICA, INC.

4. Disconnect the water hose (inlet) and water hose (outlet). (Model without CVTF cooler (air cool))
   CAUTION: Be sure to prepare the container for draining of engine coolant.

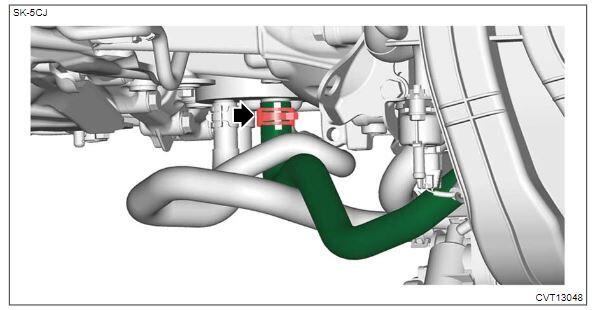

   1. Disconnect the water hose (outlet).

      Courtesy of SUBARU OF AMERICA, INC.

   2. Disconnect the water hose (inlet).

      Courtesy of SUBARU OF AMERICA, INC.

5. Disconnect the CVTF cooler hose and the water hose. (Model with CVTF cooler (air cool))
   CAUTION: Be sure to prepare the container for draining of engine coolant and CVTF.

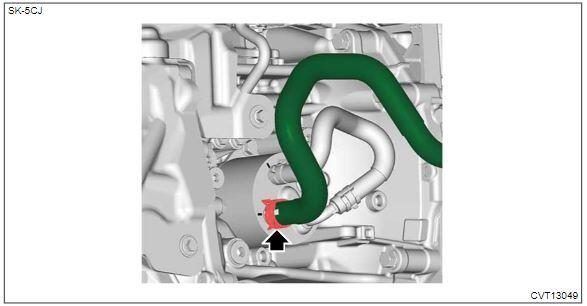

   1. Remove the CVTF cooler outlet hose.

      Courtesy of SUBARU OF AMERICA, INC.

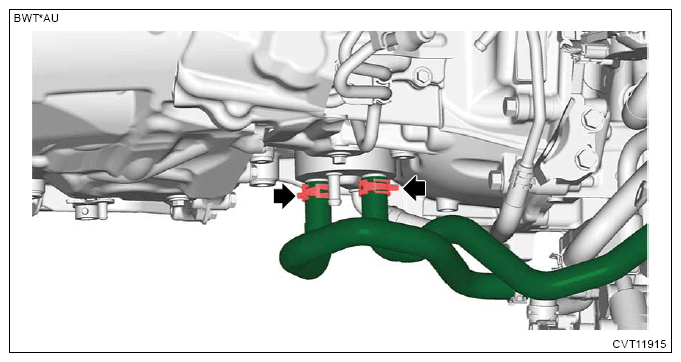

   2. Disconnect the water hose (inlet) and water hose (outlet).

      Courtesy of SUBARU OF AMERICA, INC.

   3. Remove the CVTF cooler inlet hose.

   Courtesy of SUBARU OF AMERICA, INC.

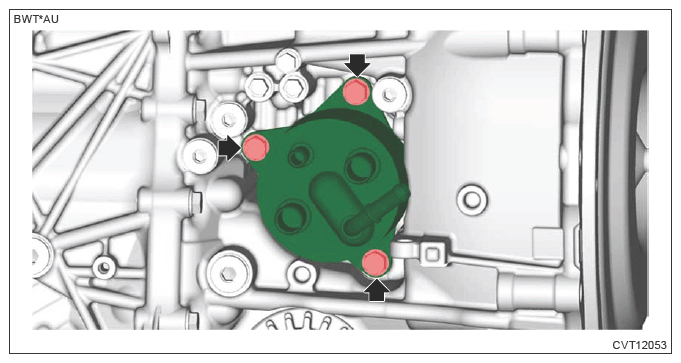

6. Remove the CVTF cooler (with warmer feature).
   CAUTION: Prepare the container for draining of CVTF.

   Courtesy of SUBARU OF AMERICA, INC.

7. Remove the O-rings.

   Courtesy of SUBARU OF AMERICA, INC.

8. Remove the water hose (outlet).
   NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
