Electric Fluid Pump: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CVTF>REPLACEMENT .
3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

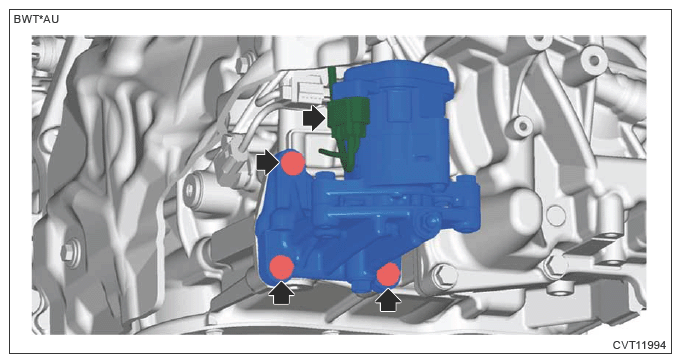

4. Disconnect the connector and remove the electric oil pump.
   NOTE: Prepare the container for draining of engine oil.

   Courtesy of SUBARU OF AMERICA, INC.

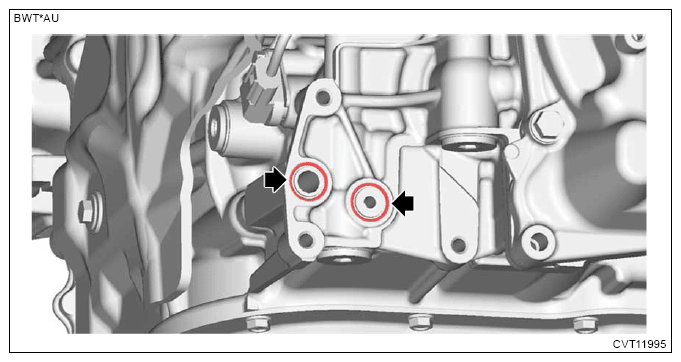

5. Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
