Extension Case: Disassembly

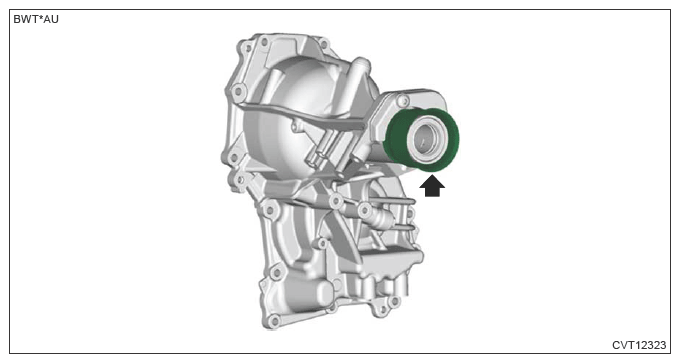

1. Remove the dust cover.

   Courtesy of SUBARU OF AMERICA, INC.

2. Remove the extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .

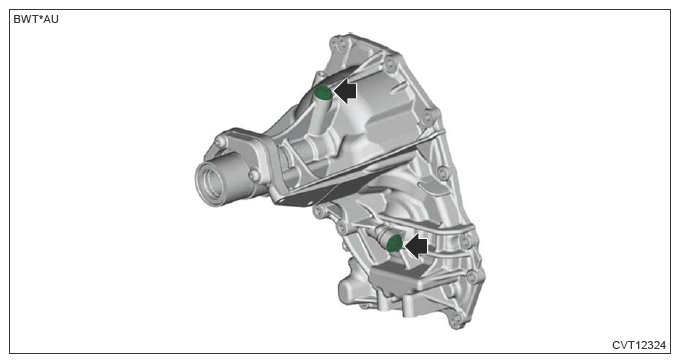

3. Remove all plugs.

   Courtesy of SUBARU OF AMERICA, INC.

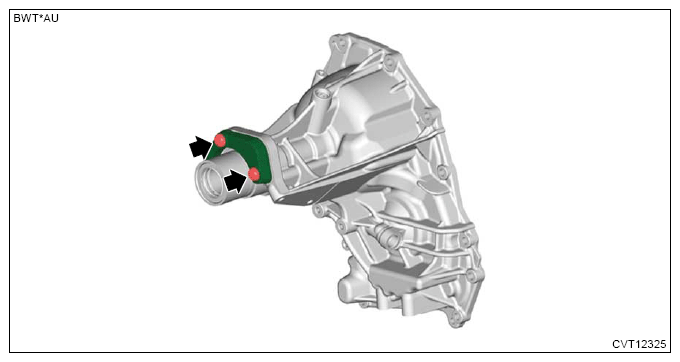

4. Remove the weight.

Courtesy of SUBARU OF AMERICA, INC.
