Oil Pump Chain: Assembly

  1. Using the ST and a press, press-fit a new ball bearing.
    NOTE: Apply CVTF to the press-fitting area.

    Preparation tool:

    ST: INSTALLER (20099AE020)

    G13622070Courtesy of SUBARU OF AMERICA, INC.

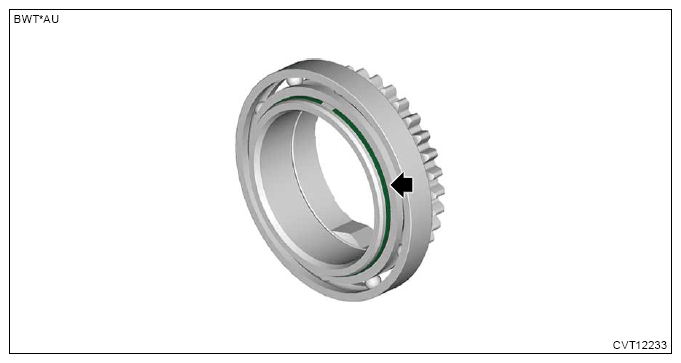

  2. Install the snap ring.
G13622068Courtesy of SUBARU OF AMERICA, INC.
