Oil Pump Chain: Disassembly

  1. Remove the snap ring.
    G13622068Courtesy of SUBARU OF AMERICA, INC.

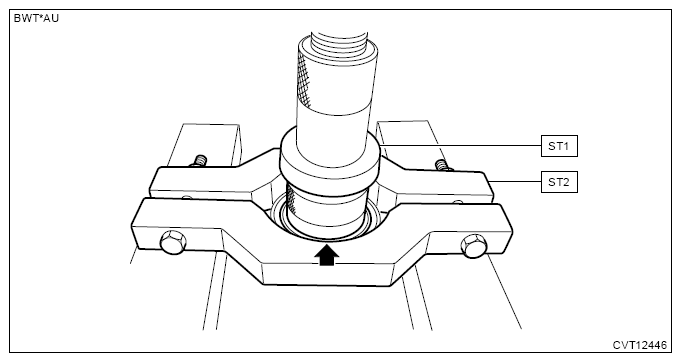

  2. Remove the ball bearing using ST1, ST2 and a press.
    CAUTION: Be careful not to drop the drive sprocket.

    Preparation tool:

    ST1: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

    ST2: REMOVER (498077600)

G13622069Courtesy of SUBARU OF AMERICA, INC.
