Before Overhaul

Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TORQUE CONVERTER>REMOVAL .
Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>AIR BREATHER HOSE>REMOVAL .

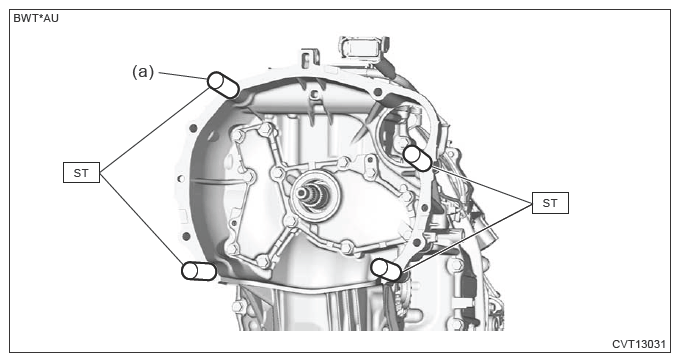

Attach the ST.
NOTE: When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.

Preparation tool:

ST: STAND ASSY (18632AA000)

Courtesy of SUBARU OF AMERICA, INC.
Place the transmission body.
CAUTION: Prepare a container for draining of CVTF, because CVTF remaining inside the transmission body may flow out from the input shaft portion.
