Relay and Fuse: Location

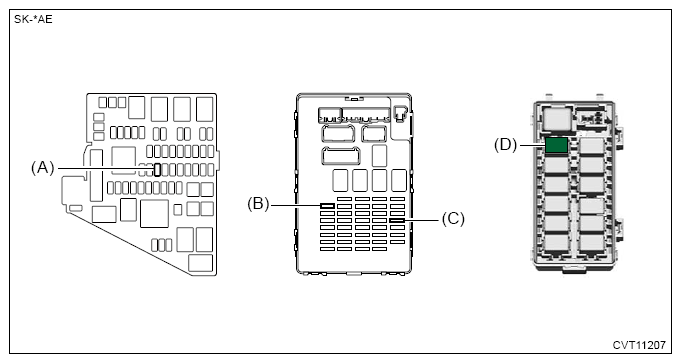

G16337619Courtesy of SUBARU OF AMERICA, INC.
(A) TCM fuse (20 A)
(B) IG fuse (15 A)
(C) IG fuse (10 A)
(D) Electric oil pump relay
