Cockpit Display: Disassembly

NOTE: The equipment varies depending on the specifications.

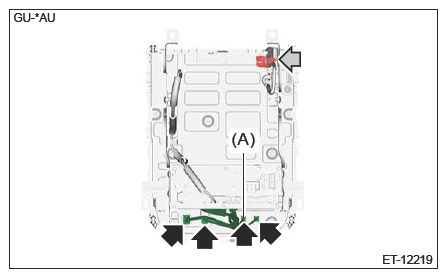

  1. Remove the center information display.
    1. Disconnect connectors.
    2. Release the connector clip.
      G16767663Courtesy of SUBARU OF AMERICA, INC.
      (A) Model with 11.6-inch display

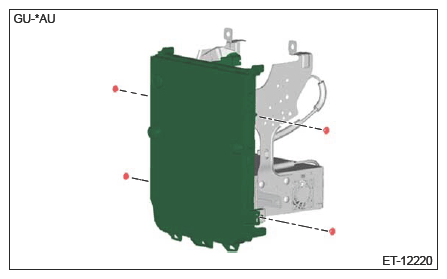

    3. Remove the screws.
    4. Remove the center information display.
    G16767664Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .
  3. Remove the cord assembly CCM.
    1. Disconnect connectors.
    2. Remove the cord assembly CCM.
    G16767665Courtesy of SUBARU OF AMERICA, INC.
    (A) Model with 11.6-inch display

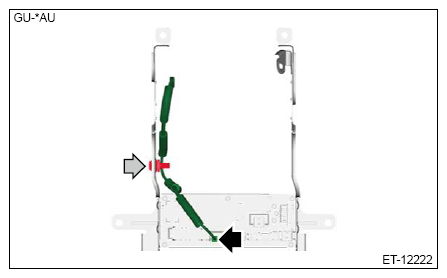

  4. Remove the cable CCM.
    1. Disconnect the connector.
    2. Remove the cable clips.
    3. Remove the cable CCM.
    G16767666Courtesy of SUBARU OF AMERICA, INC.

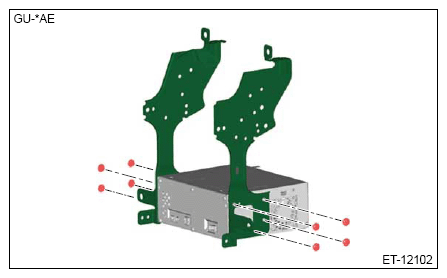

  5. Remove the unit bracket.
    1. Remove the screws.
    2. Remove the unit bracket from the cockpit control module.
    G16767667Courtesy of SUBARU OF AMERICA, INC.
