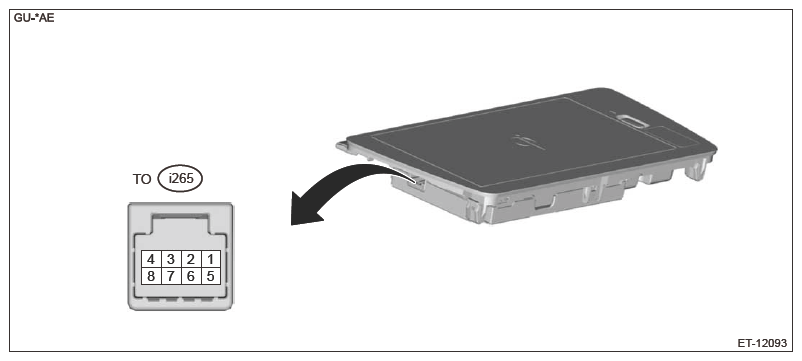

| (i265) No. 1 ←→ Chassis ground |
PGND |
Always |
Less than 1 Ω |
| (i265) No. 2 ←→ Chassis ground |
ILL- |
Always |
Less than 1 Ω |
| (i265) No. 3 ←→ Chassis ground |
ACC power supply |
Ignition switch OFF → ON |
0 V → 9 - 16 V |
| (i265) No. 4 ←→ Chassis ground |
Battery power supply |
Always |
9 - 16 V |
| (i265) No. 5 |
- |
- |
- |
| (i265) No. 6 |
- |
- |
- |
| (i265) No. 7 ←→ Chassis ground |
ILL+ |
Lighting switch OFF → ON |
0 V → 9 - 16 V |
| (i265) No. 8 ←→ Chassis ground |
WPC (charging stop signal) |
For 5 seconds after the ignition switch OFF → ON |
0 V → 4.5-6 V |
