LH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

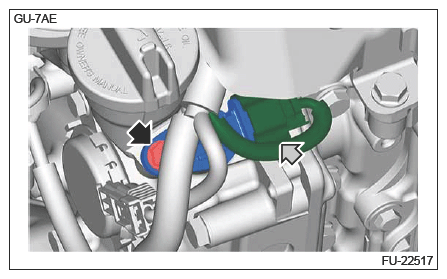

  2. Disconnect the connector and remove the camshaft position sensor.
    G16760576Courtesy of SUBARU OF AMERICA, INC.
