Air Cleaner Element: Installation

Install the air cleaner element.

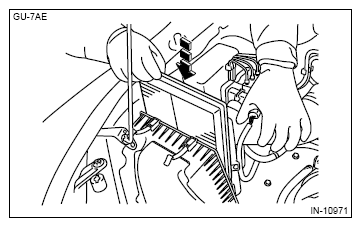

Set the air cleaner element.

CAUTION:

Be sure to use SUBARU genuine air cleaner element suitable to the engine type. Otherwise the engine performance may decrease .
Install the air cleaner element so that the printed surface is on the upper side .

NOTE: If any foreign matter is found in the air cleaner case, clean it.

Courtesy of SUBARU OF AMERICA, INC.

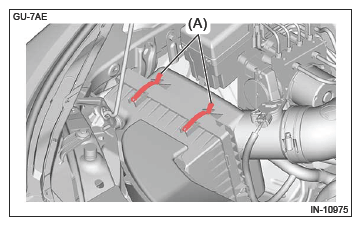

Secure to the air cleaner case (rear) with the clip (A).

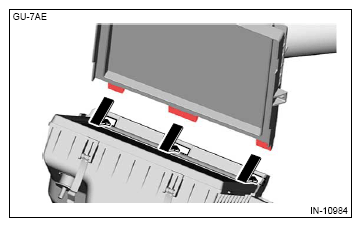

NOTE: Align the claws on the air cleaner case (rear) with the holes of air cleaner case (front) and check that the claws are securely engaged.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
