Cylinder Block 1
- 2.0 L model

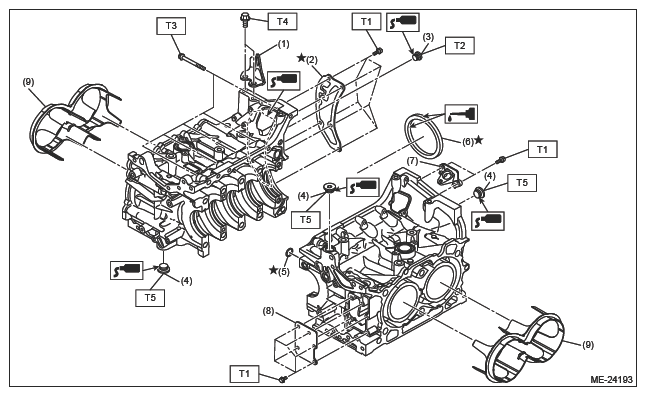

| (1) | Engine rear hanger |
| (2) | Oil separator cover |
| (3) | Cylinder block plug |
| (4) | Main gallery plug |
| (5) | O-ring |
| (6) | Rear oil seal |
| (7) | Crankshaft position sensor holder |
| (8) | Cylinder block plate |
| (9) | Water jacket spacer |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 36 (3.7, 26.6)
T5 Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .

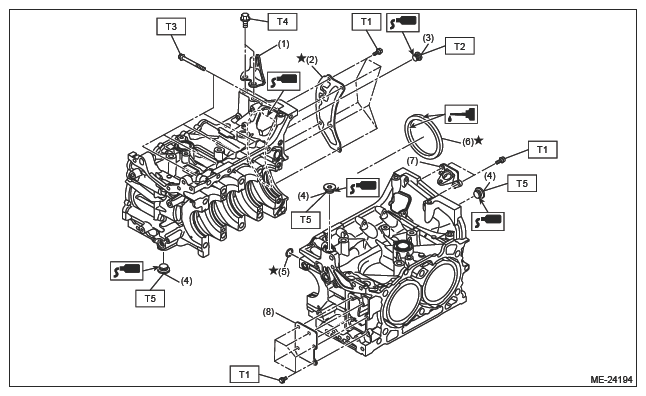

| (1) | Engine rear hanger |
| (2) | Oil separator cover |
| (3) | Cylinder block plug |
| (4) | Main gallery plug |
| (5) | O-ring |
| (6) | Rear oil seal |
| (7) | Crankshaft position sensor holder |
| (8) | Cylinder block plate |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 36 (3.7, 26.6)
T5 Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
