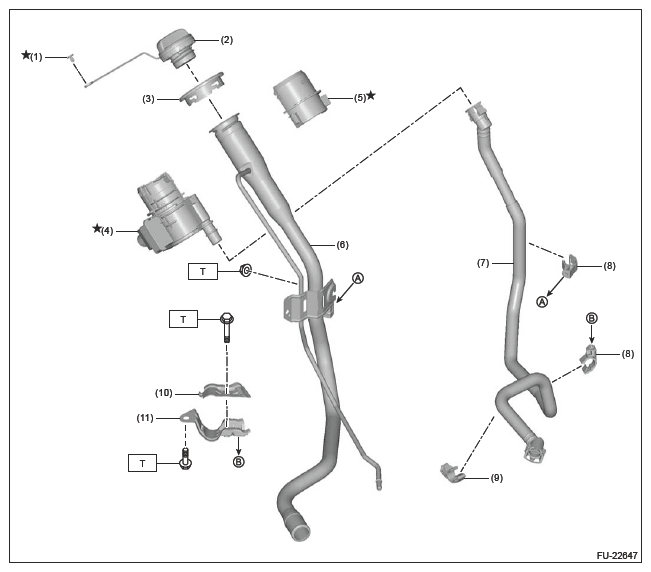

Fuel Filler Pipe
| (1) | Clip |
| (2) | FUEL FILLER CAP |
| (3) | Fuel filler pipe protector |
| (4) | Drain filter |
| (5) | Sub drain filter |
| (6) | FUEL FILLER PIPE |
| (7) | Drain tube |
| (8) | Tube clamp |
| (9) | Tube clamp |
| (10) | Upper bracket |
| (11) | Lower bracket |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
