Crossmember Support: Removal

NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the under cover front. (When the crossmember support front is removed) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

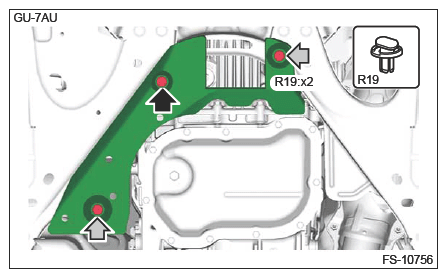

  2. Remove the cover support crossmember.
    1. Remove the bolt.
    2. Remove the clip.
    3. Remove the cover support crossmember.
      G16761985Courtesy of SUBARU OF AMERICA, INC.

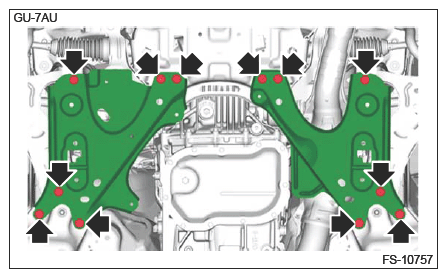

  3. Remove the crossmember support rear.
    1. Remove the bolt.
    2. Remove the crossmember support rear.
      G16761986Courtesy of SUBARU OF AMERICA, INC.

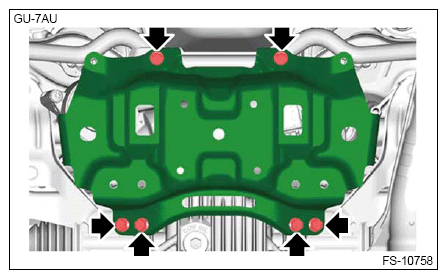

  4. Remove the crossmember support front.
    1. Remove the bolt.
    2. Remove the crossmember support front.
      G16761987Courtesy of SUBARU OF AMERICA, INC.
