Bushing Rear Front Arm

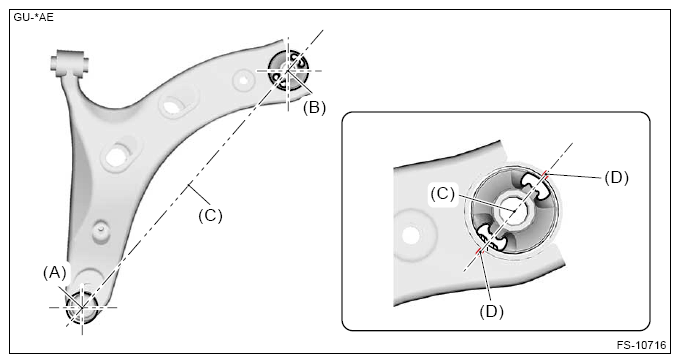

Put alignment marks (D) on the arm assembly front, based on an extended line (C) connecting the center of ball joint (A) and the center of rubber busing front arm rear (B).

Courtesy of SUBARU OF AMERICA, INC.

Remove the rubber bushing front arm rear using ST1 and ST2.

Preparation tool :

ST1: REMOVER (20299AG000)

ST2: BASE (20299AG010)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Press
(B)	Arm ASSY front
(C)	Rubber bushing front arm rear
