Extension Case: Assembly

Install the weight.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install a new O-ring or new gasket to each plug.
NOTE:
- Install the O-ring to plug (a).
- Install the gasket to plug (b).
- Apply CVTF to the O-rings.
Courtesy of SUBARU OF AMERICA, INC.
Install all plugs.
Tightening torque:

T1: 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T2: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

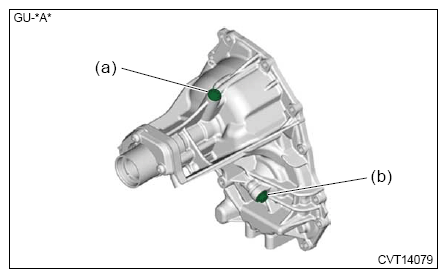

Fig 1: Plugs With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .
Install the dust cover.
