Rear Seat

Sedan model

Courtesy of SUBARU OF AMERICA, INC.

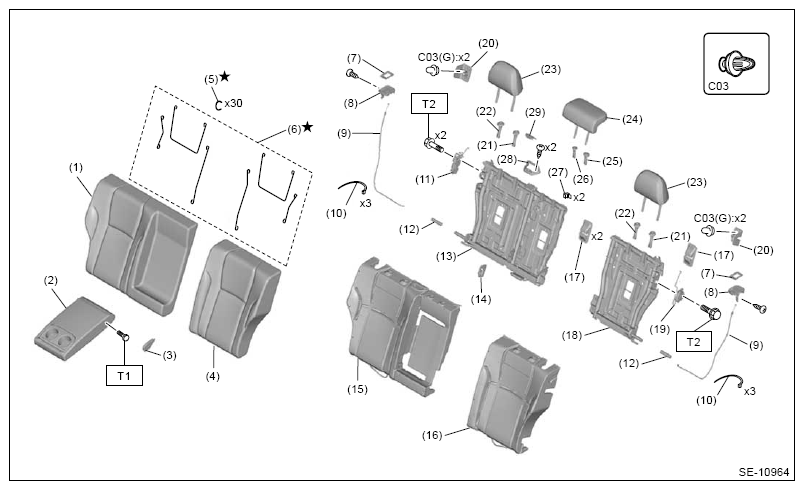

(1)	Cover backrest rear seat RH
(2)	Armrest ASSY
(3)	Cover armrest
(4)	Cover backrest rear seat LH
(5)	Hog ring
(6)	Wire set rear seat backrest
(7)	Cover button
(8)	Lock ASSY button
(9)	Wire remote
(10)	Tie-wrap
(11)	Lock ASSY RH
(12)	Bushing side hinge
(13)	Frame ASSY rear backrest RH
(14)	Bushing rear armrest RH
(15)	Seat pad ASSY rear backrest RH
(16)	Seat pad ASSY rear backrest LH
(17)	Frame ASSY rear backrest LH
(18)	Lock ASSY LH
(19)	Cover ASSY lock
(20)	Bushing lock headrest
(21)	Bushing headrest
(22)	Headrest ASSY rear
(23)	Clip
(24)	Bushing lock headrest CTR
(25)	Bushing headrest CTR
(26)	Headrest ASSY rear CTR

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 24.5 (2.5, 18.1)

Courtesy of SUBARU OF AMERICA, INC.

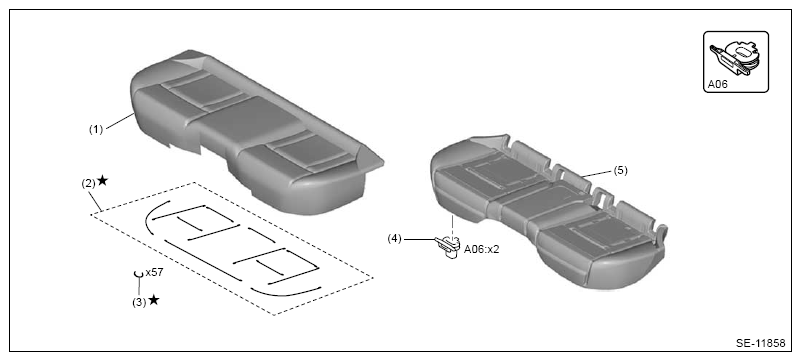

NOTE: The seating sensor mat is integrated into the pad & frame assembly rear cushion.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24.5 (2.5, 18.1)

T2: 33 (3.4, 24.3)

OUTBACK model

Courtesy of SUBARU OF AMERICA, INC.

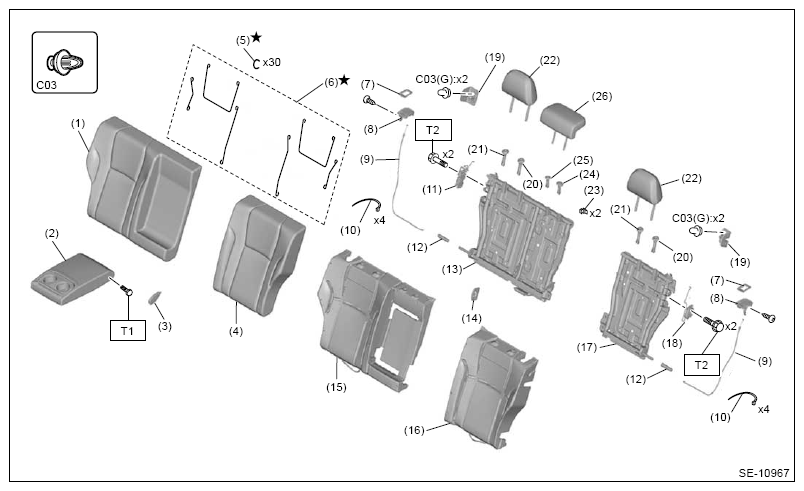

(1)	Cover backrest rear seat RH
(2)	Armrest ASSY
(3)	Cover armrest
(4)	Cover backrest rear seat LH
(5)	Hog ring
(6)	Wire set rear seat backrest
(7)	Cover button
(8)	Lock ASSY button
(9)	Wire remote
(10)	Tie-wrap
(11)	Lock ASSY RH
(12)	Bushing side hinge
(13)	Frame ASSY rear backrest RH
(14)	Bushing rear armrest RH
(15)	Seat pad ASSY rear backrest RH
(16)	Seat pad ASSY rear backrest LH
(17)	Cover tether
(18)	Frame ASSY rear backrest LH
(19)	Lock ASSY LH
(20)	Cover ASSY lock
(21)	Bushing lock headrest
(22)	Bushing headrest
(23)	Headrest ASSY rear
(24)	Headrest ASSY rear CTR
(25)	Bushing lock headrest CTR
(26)	Bushing headrest CTR
(27)	Clip
(28)	Belt guide
(29)	Cap belt guide

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 24.5 (2.5, 18.1)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The seating sensor mat is integrated into the pad & frame assembly rear cushion.

Courtesy of SUBARU OF AMERICA, INC.

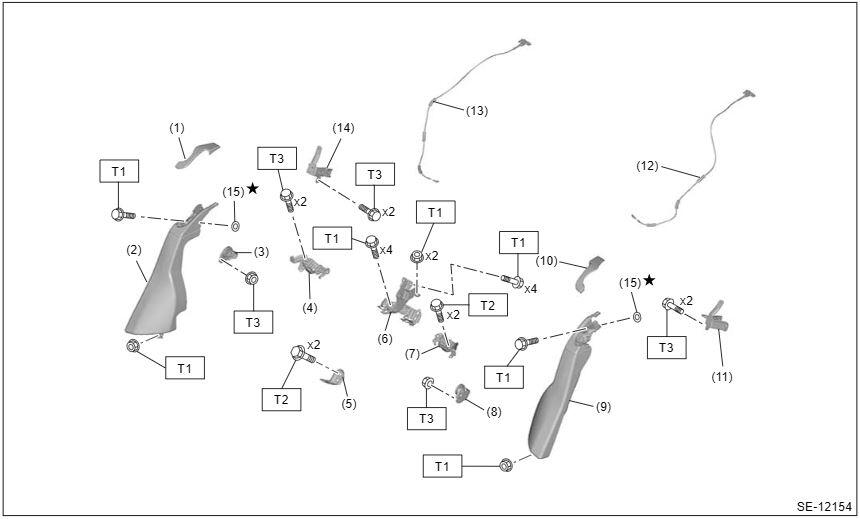

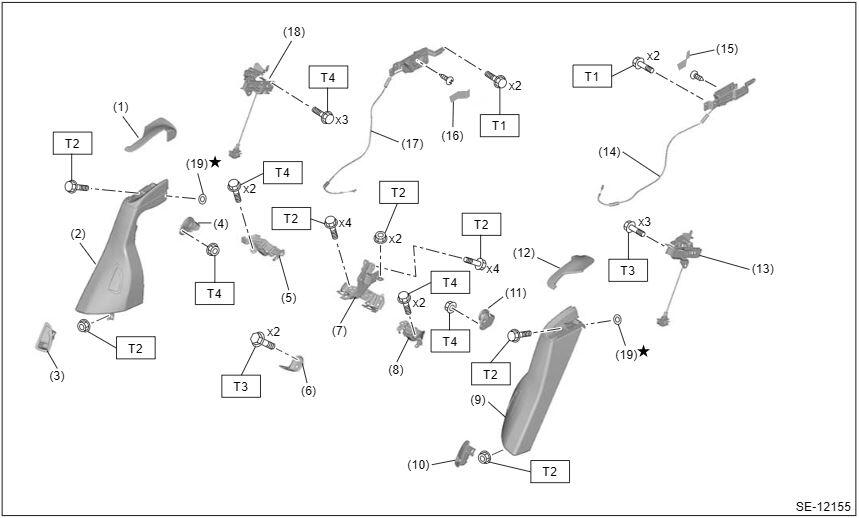

(1)	Cap belt RH
(2)	Pad rear side RH
(3)	Lever ASSY reclining RH
(4)	Spring BRKT RH
(5)	Hook BRKT rear cushion RH
(6)	Hinge ASSY CTR
(7)	Hook BRKT rear cushion LH
(8)	Pad rear side LH
(9)	Lever ASSY reclining LH
(10)	Spring BRKT LH
(11)	Cap belt LH
(12)	Striker backrest adjuster LH
(13)	Lever ASSY rear backrest LH
(14)	Cap lever ASSY LH
(15)	Cap lever ASSY RH
(16)	Lever ASSY rear backrest RH
(17)	Striker backrest adjuster RH
(18)	Push nut

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.4, 24.3)
