Model With Smart Rearview Mirror
CAUTION:
Be careful not to damage the mirror surface and the glass windshield.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .
- Remove the mirror assembly inner rearview SRM.

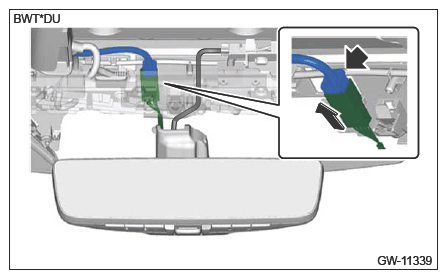

- Remove the connector lock, and disconnect the connector.

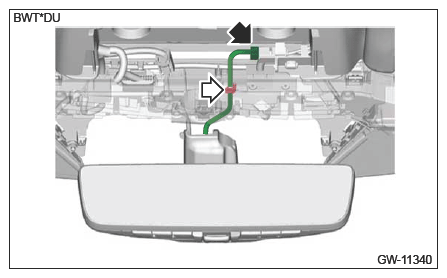

- Disconnect the coaxial cable connector and remove the coaxial cable from the clamp.

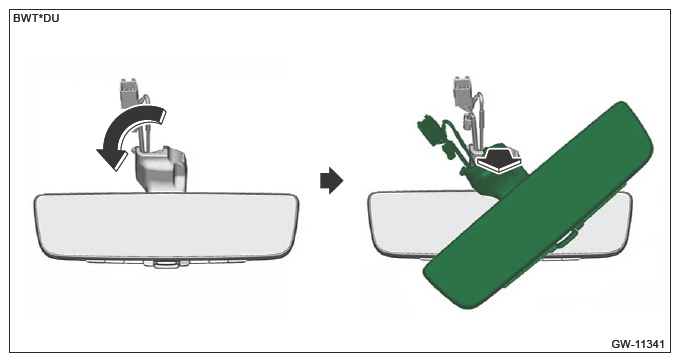

- Tilt the mirror surface so that the mirror assembly inner rearview SRM does not come in contact with peripheral parts.
- Turn the mirror assembly inner rearview SRM by 60 degrees in the direction of the arrow to remove.
- Remove the connector lock, and disconnect the connector.
- Replace the glass windshield if the base inner mirror is damaged.
