Transmission Harness: Installation

WARNING: This page is about a different variant/trim than selected.

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.
Set the transmission harness, and install the clip.

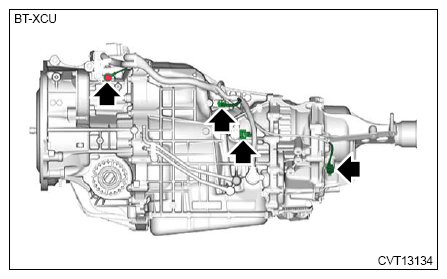

Connect the ground terminal, and connect the connectors to the primary speed sensor, secondary pressure sensor, inhibitor switch and electric oil pump.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

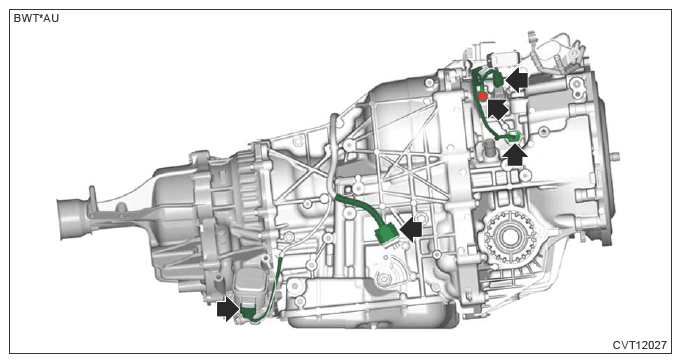

Connect the ground terminal, and connect the connectors to the secondary speed sensor and front wheel speed sensor. (Except for WILDERNESS model)
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal, and connect the connectors to the secondary speed sensor, front wheel speed sensor, and primary pressure sensor. (WILDERNESS model)
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the electric oil pump cover and ground terminal.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
Install the bolt which holds the transmission harness.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>INSTALLATION .
Remove the ST (STAND ASSY).
Install the ground cord and stay.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>INSTALLATION .
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
