Inrush Current Reduction Relay: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check that the ICR relay has no deformation, cracks or other damages.

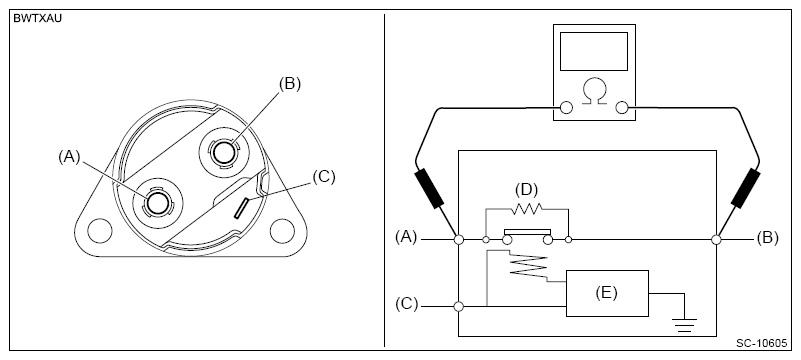

- Measure the resistance between the ICR relay terminals.
CAUTION:
To prevent burning and damaging the ICR relay drive circuit, take care not to apply the battery voltage to the ICR relay S terminal.
 Courtesy of SUBARU OF AMERICA, INC.
|
| (A) |
Terminal B |
| (B) |
Terminal M |
| (C) |
Terminal S |
| (D) |
Suppression resistor |
| (E) |
Drive circuit |
| Terminals |
Standard |
| (A) - (B) |
Less than approx. 1 Ω |
