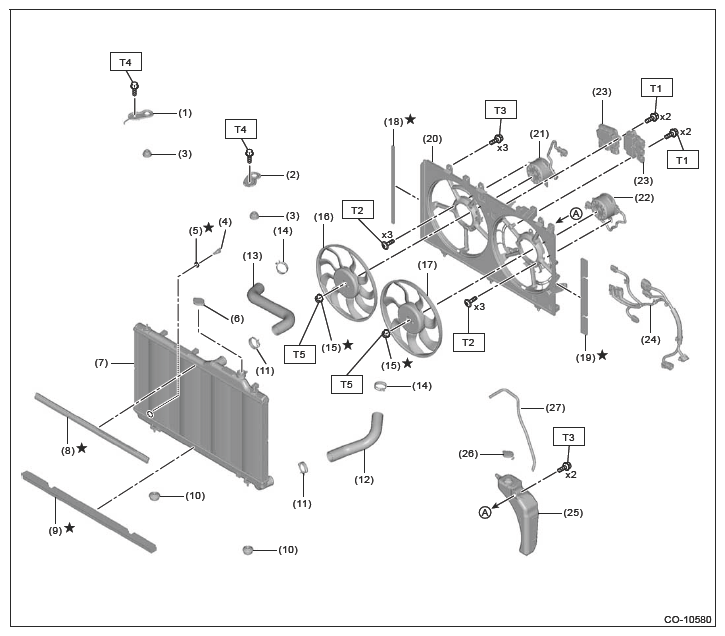

Radiator & Radiator Fan
WARNING: This page is about a different variant/trim than selected.
| (1) | Radiator upper bracket RH |
| (2) | Radiator upper bracket LH |
| (3) | Radiator upper cushion |
| (4) | Radiator drain plug |
| (5) | O-ring |
| (6) | Radiator cap |
| (7) | Radiator |
| (8) | Radiator upper gasket |
| (9) | Radiator lower gasket |
| (10) | Radiator lower cushion |
| (11) | Radiator hose clip |
| (12) | Radiator outlet hose |
| (13) | Radiator inlet hose |
| (14) | Radiator hose clip |
| (15) | Nut (with locking agent) |
| (16) | Radiator sub fan |
| (17) | Radiator main fan |
| (18) | Radiator fan shroud gasket RH |
| (19) | Radiator fan shroud gasket LH |
| (20) | Radiator fan shroud |
| (21) | Sub fan motor |
| (22) | Main fan motor |
| (23) | Radiator fan control unit |
| (24) | Radiator fan harness |
| (25) | Reservoir tank |
| (26) | Reservoir tank cap |
| (27) | Over flow hose |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.8 (0.4, 2.8)
T2: 4 (0.4, 3.0)
T3: 7.5 (0.8, 5.5)
T4: 12 (1.2, 8.9)
T5: Ref. to COOLING (H4DOTC)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>ASSEMBLY .
