Seat Cushion Airbag Module

CAUTION: If the protection felt for the seat cushion airbag module is broken or damaged, replace the seat cushion airbag module with a new part.

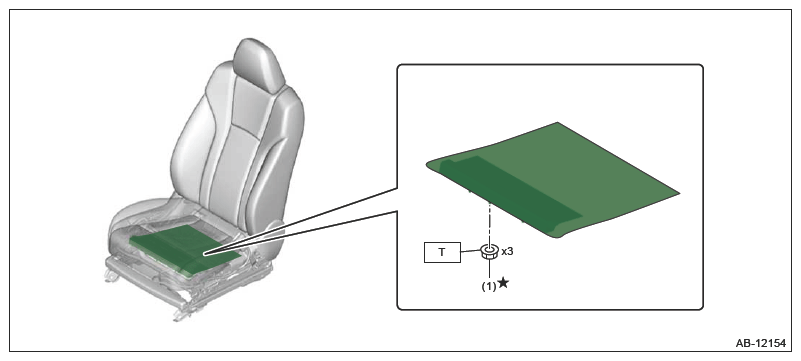

G16390148Courtesy of SUBARU OF AMERICA, INC.
(1) Self-locking nut

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
