Torque Converter: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the ST.
    G13618842Courtesy of SUBARU OF AMERICA, INC.

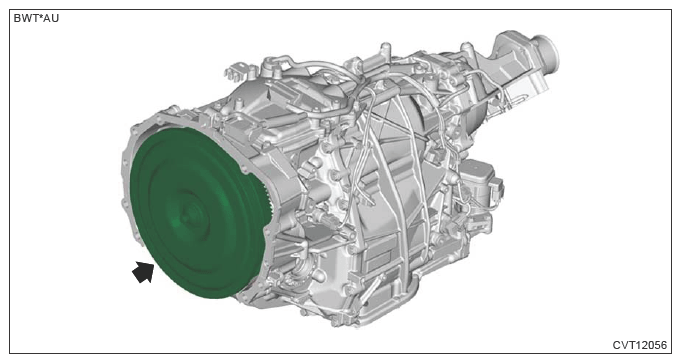

  3. Pull out the torque converter horizontally.
    CAUTION: Be careful not to scratch the inside of engaging parts.
    G13621791Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-rings.
G13603291Courtesy of SUBARU OF AMERICA, INC.
