Cockpit Display: Disassembly

Remove the center information display.

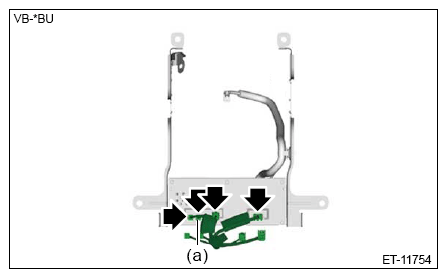

Remove the connector clips, and disconnect each connector.

Courtesy of SUBARU OF AMERICA, INC.

(a)	Model with 11.6-inch display

Remove the screws and remove the center information display.

Courtesy of SUBARU OF AMERICA, INC.

Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .

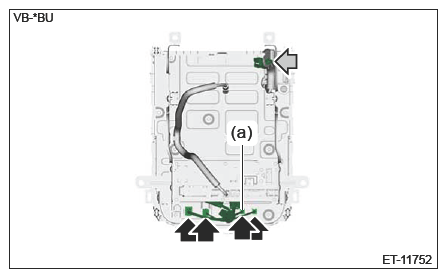

Disconnect the connectors, and remove the cord assembly CCM.

Courtesy of SUBARU OF AMERICA, INC.

(a) Model with 11.6-inch display
Remove the connector and cable clip and remove the cable CCM.

Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and remove the unit bracket from the cockpit control module.

Courtesy of SUBARU OF AMERICA, INC.
