Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the ornament panel mid passenger and panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL .
  3. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  4. Remove the data communication module.

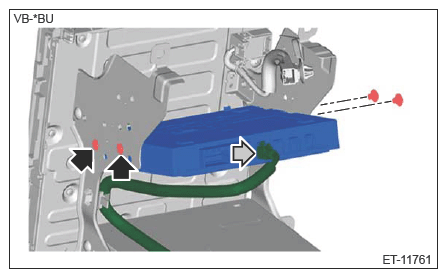

    1. Disconnect the cable CCM connector.
    2. Remove the screws and remove the data communication module.
      G14612515Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the backup battery. Ref. to ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL>BACKUP BATTERY .
    NOTE: Perform this procedure only when required.
