General Description
›
Components With Torque Specifications
›
Battery Sensor
Battery Sensor

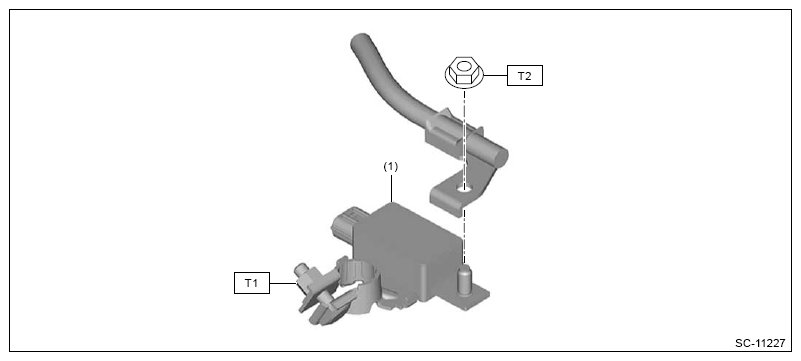

Fig 1: Battery Sensor Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Battery sensor
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
