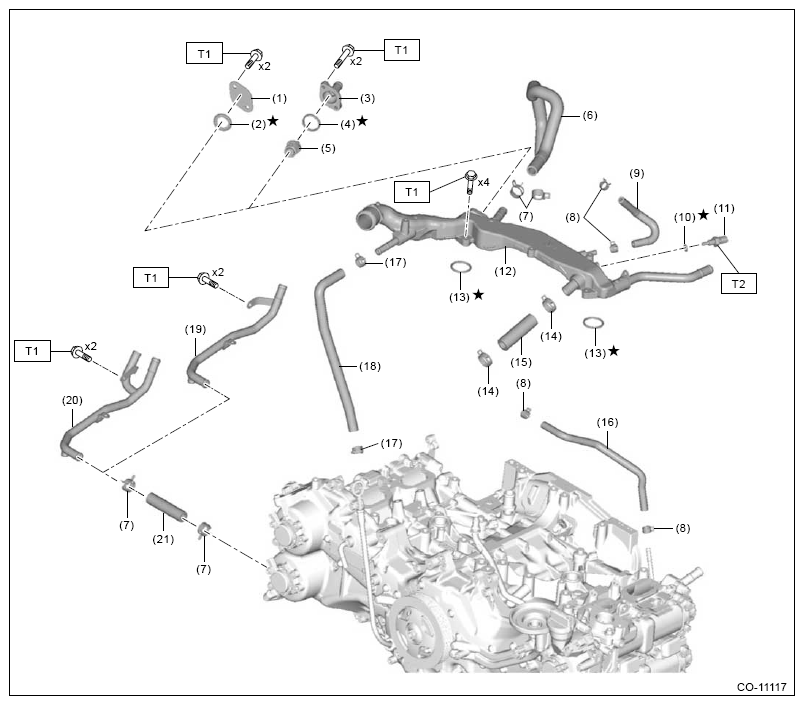

Engine Cooling System 1
| (1) | Cover (MT model) |
| (2) | Gasket (MT model) |
| (3) | Thermostat cover (CVT model) |
| (4) | Gasket (CVT model) |
| (5) | Thermostat (CVT model) |
| (6) | Water hose |
| (7) | Clip |
| (8) | Clip |
| (9) | Preheater hose |
| (10) | Gasket |
| (11) | Engine coolant temperature sensor |
| (12) | Water tank pipe ASSY |
| (13) | O-ring |
| (14) | Clip |
| (15) | Water hose |
| (16) | Preheater hose |
| (17) | Clip |
| (18) | Water hose |
| (19) | Water pipe RH (MT model) |
| (20) | Water pipe RH (CVT model) |
| (21) | Water hose |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
