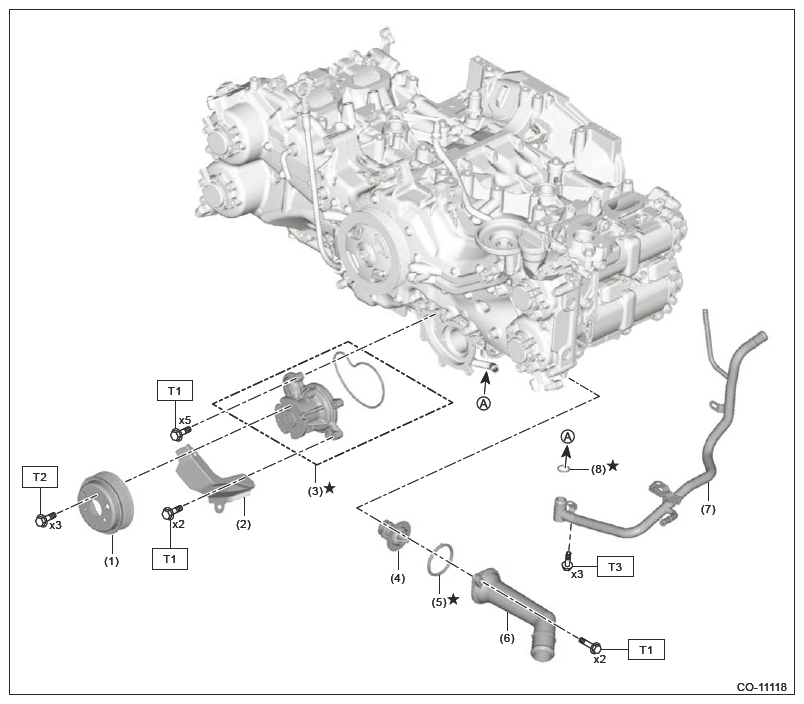

Engine Cooling System 2
| (1) | Water pump pulley |
| (2) | Water pump cover |
| (3) | Water pump ASSY |
| (4) | Thermostat |
| (5) | Gasket |
| (6) | Thermostat cover |
| (7) | Water pipe LH |
| (8) | O-ring |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 14 (1.4, 10.3)
T3: Ref. to COOLING (H4DOTC)>WATER PIPE>INSTALLATION>WATER PIPE LH .
