Home › Subaru › 2024 › WRX Base › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pressure System › Wiring Diagram

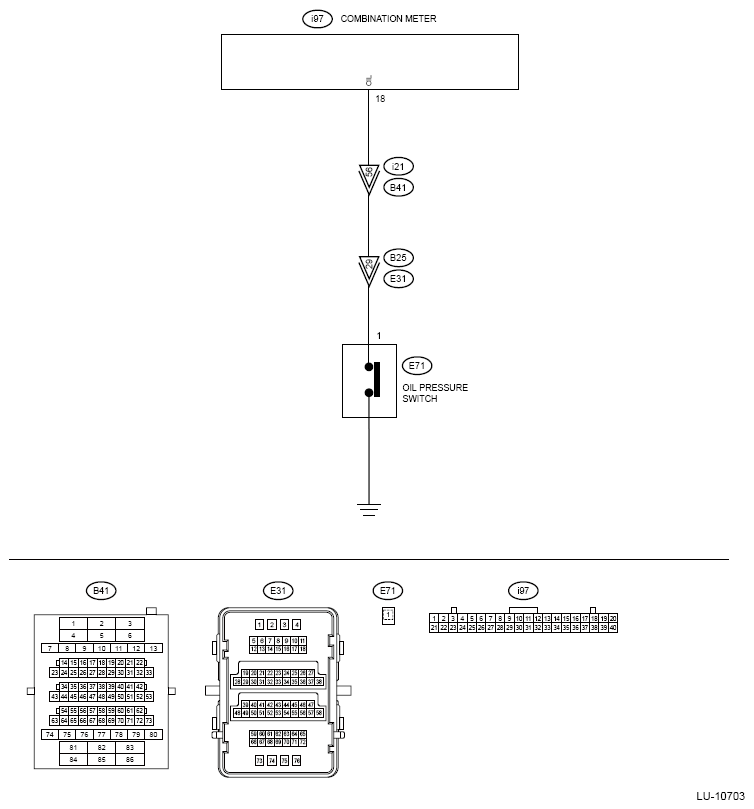

Oil Pressure System: Wiring Diagram

G14601483Courtesy of SUBA
