Eyesight Reprogramming Files/DTC B28C7 & Halt Code E5 (07-226-24R)

Publication date: 2025-04-29
Reference number: 07-226-24R
Supersedes refnos: 07-226-24

EYESIGHT REPROGRAMMING FILES/DTC B28C7 & HALT CODE E5

TECHNICAL SERVICE BULLETIN

Reference Number(s): 07-226-24R, Date of Issue: April 29, 2025

SUBARU:

2024MY Impreza & Crosstrek; 2022-24MY WRX

APPLICABILITY

2024MY Impreza & Crosstrek

2022-24MY WRX

INTRODUCTION

This bulletin announces availability of new reprogramming files developed to address the following two symptoms:

SYMPTOM #1: After the EyeSight camera has been exposed to high humidity/temperature conditions without any operation, the cooling fans become inoperable and DTC B28C7 (Fan Motor RPM) is detected by the EyeSight Stereo Camera Assembly. (EXCLUDING 2024 WRX)

SYMPTOM #2: The EyeSight system enters into a temporary halt mode with an E5 halt code detected by the EyeSight Stereo Camera Assembly.

These new files contain optimized logic providing more precise detection of DTC B28C7 and halt code E5. If either of the two symptoms listed above are reported, follow the diagnosis and reprogramming procedures outlined in this bulletin.

PRODUCTION CHANGE INFORMATION

This software has been incorporated into vehicle production as per the table below.

Model	Starting VIN
Impreza	RH355521
Crosstrek (SIA Produced)	R3760580
Crosstrek (Japan Produced)	RH355521
WRX	R9800015

PAK FILE APPLICABILITY

MY	Model	File Description	Old Part #	Decryption Keyword	New CID/ROMID
22	WRX	87501VC014.pk2.	87501VC012 87501VC013	D5F18CCE	06210007

IMPORTANT: Do not attempt a to update the EyeSight Stereo Camera Assembly if it has the most up to date software. Doing so will cause damage to EyeSight Stereo Camera Assembly.

NOTE: There is no need to recalibrate the EyeSight camera after the reprogramming procedure.

PFC FILE APPLICABILITY

MY	Model	File Description	Old Part #	New CID/ROMID
23	WRX	87501VC032.pfc	87501VC030 87501VC031	0F21000131/062100072E
24	WRX	87501VC021.pfc	87501VC020	0B21080135/0821080233
24	Impreza & Crosstrek	87501FN041_87501FN01D.pfc	87501FN001 87501FN002 87501FN01B 87501FN01C	1B21080044/112108013B

NOTE: There is no need to recalibrate the EyeSight camera after the reprogramming procedure.

PART INFORMATION

Part Description	MY	Model	Part Number
CAMERA ASSEMBLY	2022	WRX	87501VC014
	2023	WRX	87501VC032
	2024	WRX	87501VC021
	2024	IMPREZA	87501FN01D
	2024	CROSTREK (Japan Production)	87501FN041
	2024	CROSTREK (USA Production)	87501FN01D

NOTE: The parts listed above are only required when reprogramming has been unsuccessful after three attempts.

SERVICE PROCEDURE/INFORMATION

2022MY WRX ONLY: Confirm the current software information when programming the Eyesight Control Module is crucial. The system will not check to see if the current software information is installed in the Eyesight Control Module, allowing you to start the reflash with the most up-to-date software installed. Starting the reflash with the most up-to-date software already installed will cause damage to the camera assembly. Confirming that the current software information is not 0F21000131 or 062100072E is imperative. If the software does not have either of those numbers and is effected by either one of the symptoms, proceed with Appendix A for the FlashWrite procedure, as this procedure differs from the standard FlashWrite procedure.

ALL OTHER MODELS: Follow the applicable Symptom Service Procedures outlined below.

SYMPTOM #1

After the EyeSight camera has been exposed to high humidity/temperature conditions without any operation, the cooling fans become inoperable and DTC B28C7 is detected by the EyeSight Stereo Camera Assembly.

STEP 1: Is DTC B28C7 detected?

YES: Proceed to Step 2.

NO: Continue diagnosis as per the applicable Service Manual.

STEP 2: Check the Fault Freeze Frame Data (FFD).

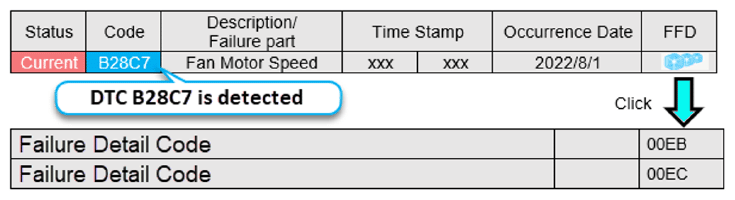

Is the Failure Detail Code (FDC) 00EC (FAN Speed is low) or 00EB (B28C7) detected during high temperature HALT?

YES: Perform the reprogramming outlined in Step 3.

NO: Continue diagnosis as per the applicable Service Manual.

STEP 3: Review the prerequisites/battery charging information provided in APPENDIX A. Connect the charger to the vehicle and set to Power Supply mode.

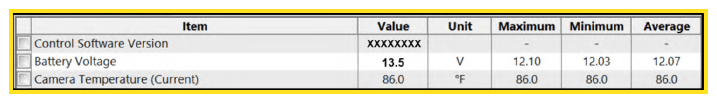

STEP 4: Using Subaru Select Monitor (SSM), confirm the battery voltage is 13.5 Volts and the Camera Temperature is less than 176°F (80°C). These prerequisites MUST be met prior to continuing.

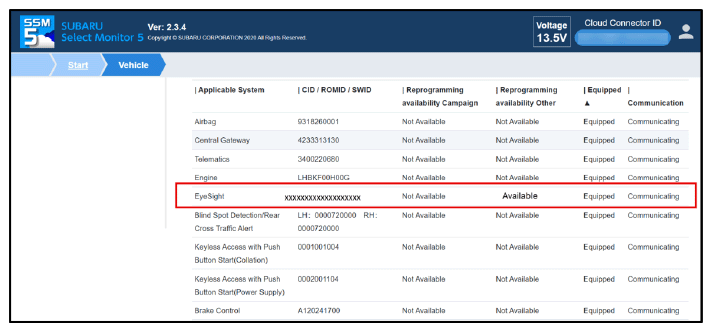

STEP 5: Using the Subaru Select Monitor 5-R (SSM5-R), confirm the following EyeSight Stereo Camera Assembly information:

The reprogramming column reads "Available."

NOTE: Additional information regarding SSM5-R can be found in TSB 14-28-21R NEW SOFTWARE REPROGRAMMING PROCEDURES/SSM5-R .

STEP 6: Are new reprogramming files available?

YES: Proceed to the next Step.

NO: Reprogramming is not required. Diagnosis must be performed as per the applicable Service Manual.

STEP 7: Reprogram the EyeSight Stereo Camera Assembly following the normal SSM5-R procedure and confirm the CID/ROMID/SWID has changed to the following:

Model	Model Year	Updated CID/ROMID/SWID
IMPREZA/CROSSTREK	24MY	1B21080044/112108013B
WRX	23MY	0F21000131/062100072E
WRX	24MY	0B21080135/0821080233

Was the reprogramming procedure successful?

YES: The procedure is completed. There is no need to recalibrate the EyeSight camera after reprogramming.

NO: Review the Error Code information in APPENDIX B. Perform up to two more reprogramming attempts. If the reprogramming procedure continues to be unsuccessful, replace the EyeSight Camera Stereo Assembly as per the applicable Service Manual. Refer to the part information on page #2.

SYMPTOM #2

The EyeSight system enters into a temporary halt mode with an E5 halt code detected by the EyeSight Stereo Camera Assembly.

STEP 1: Does any of the Subaru Select Monitor data meet the criteria outlined below?

YES: Proceed to the next Step.

NO: Perform the HALT Code E5 diagnosis as per the applicable Service Manual. Refer to STIS: DIAGNOSTICS > EyeSight (DIAGNOSTICS) > EyeSight HALT Code > E5

All Vehicles EXCEPT 24MY WRX
SSM Data Monitor Item	Criteria (Range)	Criteria (Specific Value)
EyeSight Temporary 22 Count	More than 1 (one)	1, 2, 3...
EyeSight Temporary 23 Count	More than 1 (one) 1, 2, 3	...
Camera Status Check 3	Within the range of 3C to 56	Any of the following values: 3C, 3D, 3E, 3F, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 4A, 4B, 4C, 4D, 4E, 4F, 50, 51, 52, 53, 54, 55, 56
Camera Status Check 3	Within the range of FFC4 to FFAA	Any of the following values: FFC4, FFC3, FFC2, FFC1, FFC0, FFBF, FFBE, FFBD, FFBC, FFBB, FFBA, FFB9, FFB8, FFB7, FFB6, FFB5, FFB4, FFB3, FFB2, FFB1, FFB0, FFAF, FFAE, FFAD, FFAC, FFAB, FFAA
Camera Status Check 4	Within the range of 3C to 56	Any of the following values: 3C, 3D, 3E, 3F, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 4A, 4B, 4C, 4D, 4E, 4F, 50, 51, 52, 53, 54, 55, 56
Camera Status Check 4	Within the range of FFC4 to FFAA	Any of the following values: FFC4, FFC3, FFC2, FFC1, FFC0, FFBF, FFBE, FFBD, FFBC, FFBB, FFBA, FFB9, FFB8, FFB7, FFB6, FFB5, FFB4, FFB3, FFB2, FFB1, FFB0, FFAF, FFAE, FFAD, FFAC, FFAB, FFAA

24MY WRX ONLY
SSM Data Monitor Item	Criteria (Range)	Criteria (Specific Value)
EyeSight Temporary 22 Count	More than 1 (one)	1, 2, 3...
EyeSight Temporary 23 Count	More than 1 (one)	1, 2, 3...
Camera Adjustment Value 4	Within the range of 60 to 86	60, 61, 62...,86
	Within the range of -86 to -60	-86, -85, -84, -60
Camera Adjustment Value 5	Within the range of 60 to 86	60, 61, 62...,86
	Within the range of -86 to -60	-86, -85, -84, -60

STEP 2: Review the prerequisites/battery charging information provided in APPENDIX A. Install and turn on the power supply.

STEP 3: Using Subaru Select Monitor (SSM), confirm the battery voltage is 13.5 Volts and the Camera Temperature is less than 176°F (80°C). These prerequisites MUST be met prior to continuing.

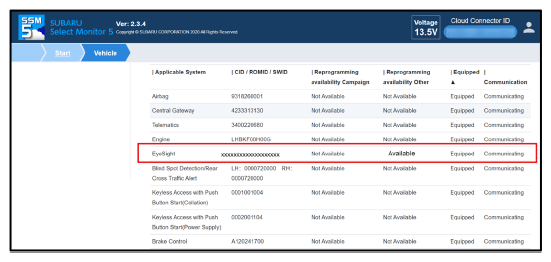

STEP 4: Using the Subaru Select Monitor 5-R (SSM5-R), confirm the following EyeSight Stereo Camera Assembly information:

The reprogramming column reads "Available."

NOTE: Additional information regarding SSM5-R can be found in TSB 14-28-21R NEW SOFTWARE REPROGRAMMING PROCEDURES/SSM5-R .

STEP 5: Are new reprogramming files available?

YES: Proceed to the next Step.

NO: Reprogramming is not required. Diagnosis must be performed as per the applicable Service Manual.

STEP 6: Reprogram the EyeSight Stereo Camera Assembly following the normal SSM5-R procedure and confirm the CID/ROMID/SWID has changed to the following:

Model	Model Year	Updated CID/ROMID/SWID
IMPREZA/CROSSTREK	24MY	1B21080044/112108013B
WRX	23MY	0F21000131/062100072E
WRX	24MY	0B21080135/0821080233

Was the reprogramming procedure successful?

YES: The procedure is completed. There is no need to recalibrate the EyeSight camera after reprogramming.

NO: Review the Error Code information in APPENDIX B. Perform up to two more attempts. If the reprogramming procedure continues to be unsuccessful, replace the EyeSight Camera Stereo Assembly as per the applicable Service Manual. Refer to the part information on page #2.

WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited, or covered by an active Subaru Added Security Gold plan, this repair may be submitted using the following claim information:

Labor Description	Labor Operation #	Labor Time	Fail Code
EYESIGHT SYSTEM REPROGRAMMING	B067-728	0.8H	ZQW-48
REPROGRAMMING SECOND ATTEMPT	C455-299	0.4H
EYESIGHT STEREO CAMERA R&R AND CALIBRATION/ADJUST	C067-713	1.4H

IMPORTANT: Always note the original Calibration Identification number (CID) the vehicle came in with on the repair order before reprogramming and, make sure to list the NEW CID for any newlyinstalled programming (as confirmed from the actual control module AFTER installation). The NEW CID MUST also be noted on the repair order as this information is required for entry in the Miscellaneous Detail field during claim submission.

IMPORTANT REMINDERS:

SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
Always refer to STIS for the latest service information before performing any repairs.

APPENDIX A

Subaru of America, Inc. (SOA) highly recommends connecting either the Subaru Midtronics DCA8000 Dynamic Diagnostic Charging System or the Subaru Midtronics GR8-1100 Diagnostic Battery Charger to the vehicle in the Power Supply Mode feature anytime a vehicle control module is being reprogrammed. Once the Midtronics charger is connected to the vehicle, if the battery is fully charged, it will take less than three (3) minutes to boot-up the charger, select the Power Supply Mode, and have the battery voltage stabilized and ready for reprogramming.

PREREQUISTS:

Confirm there are no faults within the EyeSight® system. If there are any faults, they must be diagnosed, repaired, and cleared prior to reprogramming. Confirm current software information using Eyesight data display does not show 0F21000131 or 062100072E. If current software numbers are not 0F21000131 or 062100072E please fully exit SSM prior to starting FlashWrite.
Apply the Electronic Parking Brake (EPB). Switch the ignition switch to the "ON" position (engine off). Using the gear selector lever, set the vehicle in the Neutral (N) range. Wait at least 5 minutes after complete.
CRITICAL:
- If the gear selector is in the Park (P) range, it is possible for the ignition switch to turn off automatically while reprogramming after approximately 60 minutes. This will cause the reprogramming procedure to fail.
- DO NOT operate SSM during reprograming.
- DO NOT have the engine running during reprogramming.
- You must recheck the software information after every attempted reflash. If 0F21000131 or 062100072E are displayed, the reflash was successful. If the software information is different, please reattempt the procedure up to three times.
- If the unsuccessful reprogramming attempts are made, the EyeSight Camera Stereo Assembly will require replacement as per the applicable Service Manual. Refer to the part information on page #2.
Confirm the PC being use for reprogramming is connected to a known good power source. Turn off any screen saver settings. Make sure the PC is not in power saving mode and is set to the normal power mode.
Confirm all electrical loads are switched off such as climate control, seat heater, audio system, etc.
Connect a Midtronics DCA-800 or GR8-100 battery charger to the vehicle, utilize the Power Supply Mode feature to supply a stable 13.5 volts.

NOTE:

For instructions on using the Power Supply Mode, reference the applicable User Manual for the
Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Midtronics GR8-1100 Diagnostic Battery Charger on STIS.
Confirm all electrical loads such as lights, audio, HVAC, seat heaters, and rear defroster are all switched OFF before setting up the charger for Power Supply Mode.
Select the correct battery type (Enhanced Flooded, Flooded, Gel, AGM, or AGM Spiral).
Input the CCA which matches the vehicle's battery.
NOTE: OE and replacement batteries have different CCA ratings. Always confirm the battery's CCA rating before proceeding.
If using a DCA-8000 Dynamic Diagnostic Charging System, set the power supply voltage to 13.5 Volts.
DO NOT connect the DST-i or DST-010 until the Power Supply mode function has completed its battery test mode and the Charging Voltage has dropped to and shows a steady 13.5 Volts on the display.
Once Power Supply Mode reaches a steady 13.5 Volts, connect the DST-i or DST-010 to the OBD connector and proceed with initiating the normal FlashWrite reprogramming process.
Amperage will fluctuate based upon the vehicle's demand for power.
NOTE: If the voltage rises beyond 14 Volts while programming is in process, the procedure will abort. This can indicate a need to test or charge the vehicle battery before any further attempt at programming is made.
ALWAYS set the power supply voltage to 13.5 Volts when using Power Supply Mode. NEVER turn the ignition switch on when charging at voltages 15 Volts or higher.
Control module failures resulting from battery discharge during reprogramming are not a matter for warranty. Should any DTCs reset after the reprogramming update is performed, diagnose per the procedure outlined in the applicable Service Manual.

REMINDER: If the DCA-8000 or GR8-1100 indicates the vehicle's battery must be charged, charge the battery fully before proceeding to reprogram the vehicle while using the Power Supply Mode.

VERY IMPORTANT:

This information is applicable to the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System and the Subaru Midtronics GR8-1100 Diagnostic Battery Charger ONLY . It does not apply to any other brand/type of "generic" battery charger whatsoever. ONLY the DCA-8000 and the GR8-1100 and their Power Supply Mode feature have been tested and approved by SOA.

APPENDIX B

If an error code is displayed during reprogramming, follow the corrective action for each error code below.

Error code	Type of Error	Corrective Action
4510	The applicable unit is not in a state for reprogramming execution.	Check if the camera temperature is less than 60°C and the battery voltage is more than 12V and less than 13.5V. After IG OFF, put the system under conditions described above and execute the reprogramming again.
4511 4512	The data transfer cannot start.	Turn OFF the ignition switch and wait for 10 seconds. Repeat the reprogramming procedure. DO NOT close the reprogramming software at this time.
4513	An error occurred during the data transfer.
4514	An error occurred when data transmission was completed.
4515 4516	An error occurred during the check after data transfer.
4525	A communication error has occurred between the PC and the vehicle.

IMPORTANT: If the reprogramming procedure continues to be unsuccessful after a total of 3 attempts, replace the EyeSight Camera Stereo Assembly and perform the reprogramming procedure.
