Stabilizer Bushing
CAUTION:
- Install the rubber bushing stabilizer rear so that the slit does not shift to the right or left.
- Install the clamp stabilizer with the peak of triangle facing the front of the vehicle.
- Before installation, check the rubber bushing stabilizer rear for abnormal cracks, fatigue or damage.
- Install the rubber bushing stabilizer rear.

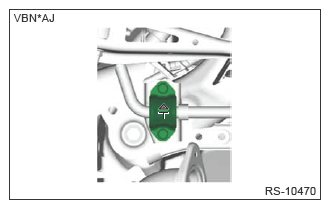

- Install the clamp stabilizer.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
