Rear Drive Shaft: Installation

Select the rear drive shaft shim.

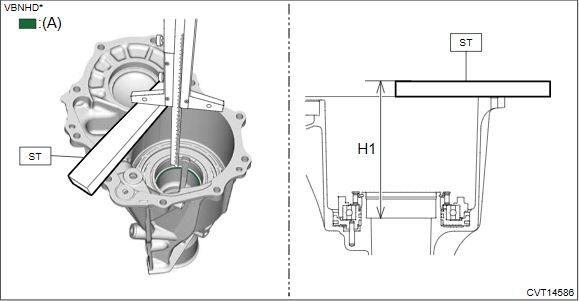

Using the ST, measure the height "H1" from the end surface of ST to the contact surface of ball bearing.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Measurement surface

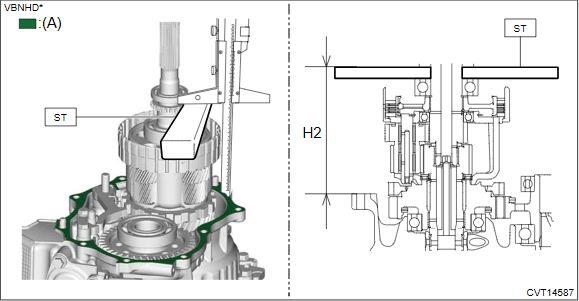

Using the ST, measure the height "H2" from the ST end face to the intermediate case mating surface.

NOTE: Set the ST so that it does not ride on the ball bearing inner race.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Measurement surface

Using the following calculation, calculate an appropriate thickness "T" of the rear drive shaft shim.

NOTE: Adjust using 0 - 4 pieces.

T = H1 - H2 - 0.05 - 0.25 mm (0.002 - 0.010 in)

T	Rear drive shaft shim thickness (mm (in))
H1	Measured value (mm (in)) of step (1)
H2	Measured value (mm (in)) of step (2)
0.05 - 0.25 mm (0.002 - 0.010 in)	Clearance specification

Install the rear drive shaft.
Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
